Description

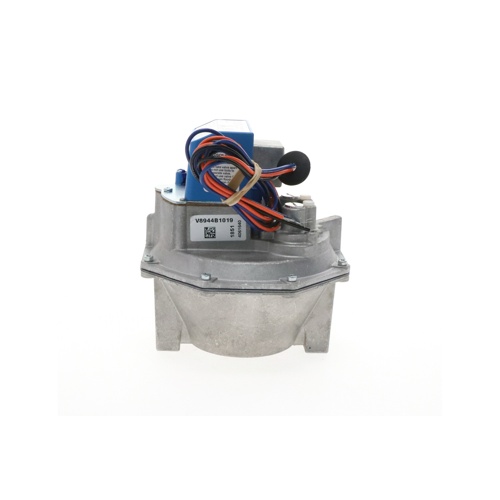

The Honeywell V8944B1019 is a 1-inch straight-through, two-stage pressure regulating gas valve engineered for reliable, precise gas flow control in commercial and industrial heating applications. Designed to operate on a 24VAC control circuit, this valve delivers consistent two-stage firing performance — ideal for systems requiring both high-fire and low-fire operation for improved efficiency and comfort.
Key Features
- 1″ straight-through valve body for easy in-line installation
- Two-stage pressure regulating design for high-fire and low-fire operation
- 24VAC operating voltage for compatibility with standard control systems
- Maximum inlet pressure: 1/2 PSI (natural gas service)
- High-fire outlet pressure: 3.5″ W.C.
- Low-fire outlet pressure: 0.8″ W.C.
- Lightweight, corrosion-resistant aluminum body construction
- 1/8″ pilot tapping for pilot gas supply connection
- Two 5/16″ bleed tappings for pressure testing and diagnostics
- 1/4″ spade terminals with 30″ leadwires for convenient wiring
- Natural gas rated
Specifications
- SKU: V8944B1019
- Brand: Honeywell
- Valve Size: 1″
- Valve Type: Straight-through, two-stage pressure regulating
- Control Voltage: 24VAC
- Maximum Inlet Pressure: 1/2 PSI
- High-Fire Outlet Pressure: 3.5″ W.C.
- Low-Fire Outlet Pressure: 0.8″ W.C.
- Gas Type: Natural Gas
- Body Material: Aluminum
- Pilot Tapping: 1/8″
- Bleed Tappings: Two 5/16″
- Terminals: 1/4″ spade terminals with 30″ leadwires
Application
The V8944B1019 is well-suited for use in commercial burners, boilers, and heating equipment requiring two-stage gas valve control. The aluminum body keeps weight low while maintaining durability, and the included pilot and bleed tappings simplify installation, commissioning, and field servicing. The 30″ leadwires with 1/4″ spade terminals allow for flexible wiring to standard 24VAC control boards.
