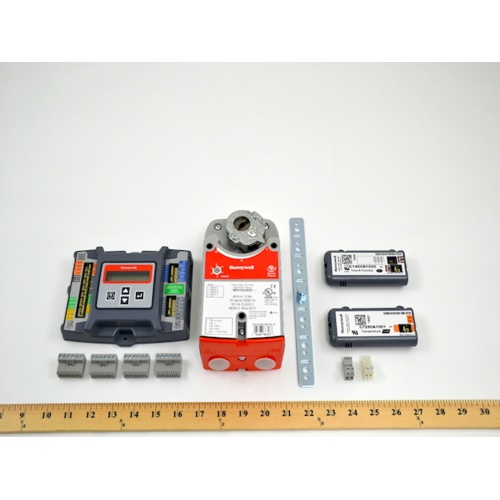

Honeywell YL7220SJ3105 Jade Economizer System Kit Overview
The Honeywell YL7220SJ3105 Jade Economizer System Kit is a complete, integrated solution designed to deliver intelligent free-cooling control in commercial HVAC applications. Operating on 24 Vac power, this kit leverages Honeywell’s Sylk communicating bus technology to provide seamless, reliable communication between system components — reducing wiring complexity and improving overall system diagnostics.
Key Features
- Supply voltage: 24 Vac
- Operating temperature range: -40°F to 150°F (-40°C to 65.6°C)
- Operating humidity range: 5–95% RH, non-condensing
- Output type: Sylk communicating actuator — enables intelligent bus communication between the controller and actuator
- Compatible with Honeywell Series 72 actuators for precise damper positioning
- Designed for use with Honeywell C7232 Series enthalpy/CO₂ sensors
- Complete system kit includes all necessary components for a streamlined economizer installation
Sylk Communication Technology
The Sylk (Serial Link) communicating output simplifies system wiring by allowing the controller and actuator to share a single two-wire communication bus. This reduces installation time, minimizes potential wiring errors, and enables advanced diagnostics and feedback directly from the actuator — a significant advantage over traditional analog control wiring.
Compatible Components
- Honeywell Series 72 Damper Actuators
- Honeywell C7232 Series Enthalpy/CO₂ Sensors
Ideal Applications
- Rooftop unit (RTU) economizer control
- Commercial HVAC free-cooling strategies
- Building automation and energy management systems
- New construction and retrofit economizer installations
Specifications
- SKU: YL7220SJ3105
- Brand: Honeywell
- Supply Voltage: 24 Vac
- Operating Temperature: -40°F to 150°F (-40°C to 65.6°C)
- Operating Humidity: 5–95% RH, non-condensing
- Output: Sylk Communicating Actuator
- Compatible Actuators: Honeywell Series 72
- Compatible Sensors: Honeywell C7232 Series
