ICM Controls 3VMS-60-208 3-Phase Voltage Monitor & Surge Protector, 60A, 208VAC

Description

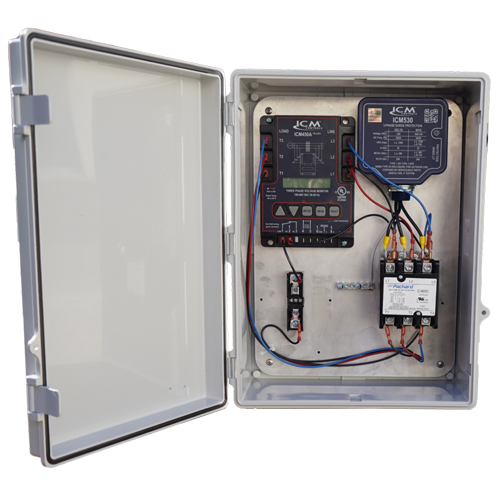

The ICM Controls 3VMS-60-208 combines the benefits of the ICM450A PLUS+ programmable 3-phase line voltage monitor and the ICM530 type 1 and type 2 three-phase Surge Protective Device (SPD) into a single, easy-to-install enclosure. The unit monitors incoming line voltage for phase loss, phase reversal, phase unbalance, and over/under voltage conditions, while providing surge protection for residential and commercial three-phase 208VAC HVAC/R equipment. All components are pre-wired for 208VAC in a modular design with field-replaceable parts, and the field-programmable voltage monitor features a backlit LCD display with a large fault history log and real-time clock for date and time stamping of fault events. A separate 3-pole, 60-amp contactor fully disconnects the unit from the service when a fault condition is detected. The integrated TFMOV surge protection technology is built to withstand major surge events up to 150,000 amps, with a diagnostic green LED indicating active surge protection. Housed in a NEMA Type 4X rated enclosure, the 3VMS-60-208 is UL Listed and backed by a limited lifetime product warranty with up to a 3-year, $10,000 connected equipment warranty.

Features:

• Combines 3-phase line voltage monitoring and TFMOV surge protection in one enclosure
• Protects against over/under voltage, phase loss, phase reversal, phase unbalance, and rapid short cycling
• Field-programmable voltage monitor with backlit LCD display and fault history log
• Real-time clock for date/time stamping of fault events
• Separate 3-pole, 60-amp contactor fully disconnects from service
• TFMOV surge protection technology rated up to 150,000 amps max surge current
• Diagnostic green LED indicates active surge protection
• NEMA Type 4X rated enclosure
• Modular design with field-replaceable components
• UL Listed (E518971)
• Limited lifetime product warranty, up to 3-year/$10,000 connected equipment warranty

Specifications:

• Model: 3VMS-60-208
• Nominal Voltage: 208 VAC
• Operating Voltage Range: 190–252 VAC
• Frequency: 50/60 Hz
• SCCR: 5kA
• Contactor Output: 60A FLA, 208/240VAC
• Max Surge Current: 150,000 amps
• Surge Protection Modes: L-L, L-N
• Voltage Set Point (Default): 240VAC
• Phase Unbalance Setting: 7%
• Over/Under Voltage Setting: 5%
• Delay on Break (ASC): 15 seconds
• Delay on Fault: 3 seconds
• Reset Mode: Auto
• Dimensions: 15.7″L x 11.7″W x 6.3″D
• Certification: UL Listed (E518971)
• Applications: Appliance, Electrical, HVAC/R, Marine, Pool & Spa, RV
