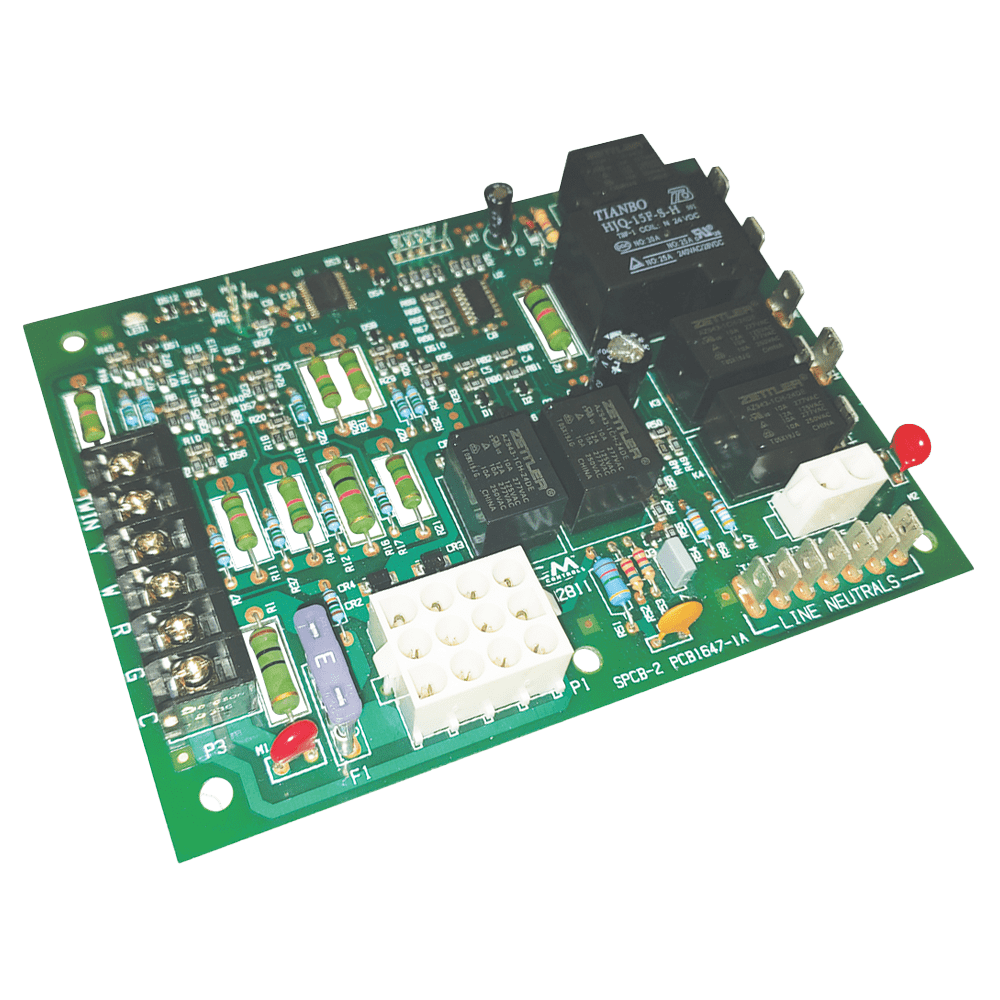

ICM Controls ICM2811 Automated Gas Ignition Replacement Control Board For Goodman Boards

BRAND: ICM Controls SKU: ICM2811

$67.99

MSRP: $78.19
You save 15%

Automated Gas Ignition Control Board

Availability:

2 In Stock

Description

The ICM2811 is an automated gas ignition control board which monitors the ignition sequence including the combustion air blower, pressure switch, hot surface igniter, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.

Onboard diagnostics will illuminate a flash code to help technicians properly diagnose issues quickly.
Features:
  • Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Monitors system pressure and limit switches
  • Microprocessor based precision
  • Twinning compatible with another ICM2811 Control Board
  • Diagnostic LEDs aid in testing and troubleshooting
Replaces:
  • Goodman: PCBBF110, PCBBF110S, PCBBF123, PCBBF123S, 0130F00005,0130F00005S, PCBBF112, PCBBF112S, B18099-26, B18099-26S
  • White-Rodgers: 50A55-743, 50A55-289, 50T55-289

Additional information

Electrical Rating

@ 77?F (25?C)

Input Voltage

18-30 VAC 50/60 Hz maximum

Igniter Current

6.0 amp @ 120 VAC 50/60 Hz (resistive)

Inducer Relay

2.2 FLA?3.5 LRA @ 120 VAC

Blower Relay

14.5 FLA?25.0 LRA @ 120 VAC (2spd?H/C)

Gas Valve Relay

1.5 amp @ 25 VAC 50/60 Hz 0.6 pf

Operating Temp Range

-40?F to 176?F (-40?C to 80?C)

Humidity Range

5 to 95% Relative Humidity, Non-Condensing

UPC 800442122038
