Description

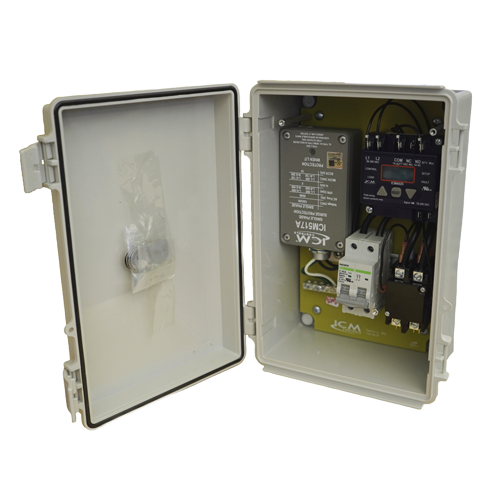

The ICM Controls Sentry 3N1 combines the benefits of an ICM517A-LITE single-phase surge protection device and an ICM492D single-phase voltage monitor into one easy-to-install solution, while also providing a convenient onboard disconnect breaker for safely switching power on and off. The Sentry 3N1 protects against both power surges and over/under voltage conditions that can damage circuit boards and motors in residential and commercial single-phase 208/240VAC HVAC/R equipment. All components are pre-wired for 208/240 volts in a modular design with field-replaceable parts. The field-programmable voltage monitor features an improved backlit digital display with 5-fault memory, protecting against over/under voltage and rapid short cycling caused by transient faults and power interruptions. A separate 40-amp contactor fully disconnects the unit from the service, and the 40-amp internal breaker allows for easy switching of power on and off. TMOV surge protection technology is built to withstand major surge events, with a diagnostic green LED indicating active surge suppression. Housed in a NEMA Type 4X rated, ultrasonically welded enclosure, the Sentry 3N1 is UL Listed and designed and manufactured in the USA. Backed by a limited lifetime product warranty with up to a 3-year, $25,000 connected equipment warranty. Compatible as a replacement for RectorSeal RSH-50VRM Kit-DC applications.
Features:
- Combines surge protection, voltage monitoring, and disconnect breaker in one unit
- Protects against over/under voltage, rapid short cycling, and transient faults
- Field-programmable voltage monitor with backlit digital display and 5-fault memory
- Separate 40-amp contactor fully disconnects from service
- 40-amp internal breaker for easy power switching
- TMOV surge protection technology, built to withstand major surge events
- Diagnostic green LED indicates active surge suppression
- NEMA Type 4X ultrasonically welded enclosure
- Modular design with field-replaceable components
- Designed and manufactured in the USA
- UL Listed (ICM517A-LITE file E347279; ICM492D file E53944)
- Limited lifetime product warranty, up to 3-year/$25,000 connected equipment warranty
- Replaces RectorSeal RSH-50VRM Kit-DC
Specifications:
- Model: Sentry 3N1
- Line Voltage: 208/240 VAC
- Frequency: 50/60 Hz
- Breaker: 40 amp at 240 VAC
- Contactor Output: 40A FLA, 208/240VAC
- Max Surge Current: 60,000 amps
- Surge Protection Modes: L-L, L-G
- Voltage Set Point (Default): 240VAC
- Over/Under Voltage Setting: 5%
- Delay on Break (ASC): 15 seconds
- Delay on Fault: 2 seconds
- Reset Mode: Auto
- Flame Rating: UL94-5VA
- Enclosure Rating: NEMA Type 4X
- Certifications: UL Listed (ICM517A-LITE E347279; ICM492D E53944)
- Applications: Appliance, Electrical, HVAC/R, Marine, Pool & Spa, RV
