Description

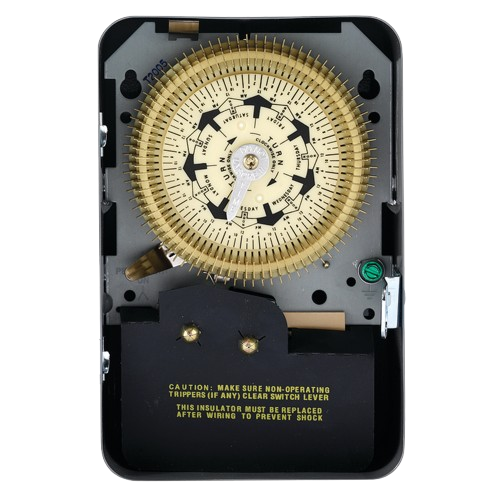

The Intermatic T2005 is a compact yet reliable 7-day mechanical time switch designed to automate on/off scheduling for lighting, pumps, motors, HVAC systems, and other electrical loads. Built on the proven T2000 series platform, this timer delivers flexible weekly scheduling with ample capacity for residential, commercial, and light-industrial applications.
Key Features
-
Weekly scheduling with up to 42 switching events per week — Program different on/off times for each day of the week. Supports up to six ON/OFF cycles per day with minimum 2-hour intervals.
-
20 A resistive load capacity / motor load rated — Handles resistive loads up to 20 A at 120 VAC, or motor loads up to ½ HP at 125 VAC (1 HP at 250 VAC when wired accordingly). Great for pumps, fans, lighting, heaters, or small motors.
-
Flexible control: SPDT contact, 1 pole — Provides single-pole, double-throw switching (1NO/1NC) for versatile control configurations.
-
Durable indoor-rated enclosure — Housed in a NEMA-1 metal case suitable for indoor installation. Operates reliably from –40 °F to 130 °F.
-
Simple mechanical programming — Use included ON/OFF trippers to set up your schedule — no programming required. Timer repeats weekly after setup, ideal for recurring schedules.
-
Manual override available — Easily bypass the timer schedule for manual control when needed.
