Description

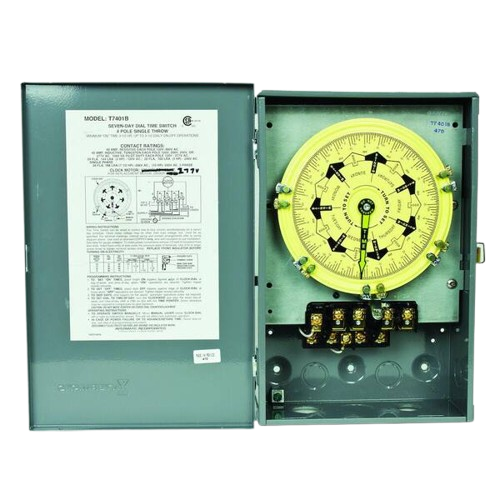

The Intermatic T7401B is a heavy-duty, electromechanical time switch designed to deliver dependable weekly on/off scheduling for lighting, motors, pumps, HVAC systems, and other loads — all controlled from a single, wall-mounted unit. Built for versatility and long-term reliability, this timer is part of the trusted T7000B series and offers flexible scheduling paired with substantial load-handling capabilities.
Key Features
-
True 7-day scheduling with 4-pole control: Program different ON/OFF times for each day of the week for up to four separate circuits at once, streamlining control of multiple loads.
-
High load capacity: Supports up to 40 A per circuit — enough for resistive, inductive, tungsten, ballast, or motor loads — rated up to 10 HP (3-phase) or equivalent motor loads depending on wiring.
-
Minimum ON/OFF intervals of 3½ hours: Provides stable, reliable scheduling for applications where frequent switching is not required, such as HVAC, lighting, pumps, or motors.
-
Separate clock motor terminals: Allows the timer clock to run independently of the load circuits, which can be advantageous when loads operate at different voltages or require isolation.
-
Durable construction & indoor-rated metal enclosure: Built with a sturdy NEMA 1 metal housing, rated for –40 °F to 130 °F, suitable for indoor or protected environment installations.
-
Manual override function: Offers manual control when needed — useful for maintenance or situations where you need to bypass automatic scheduling temporarily.
