Description

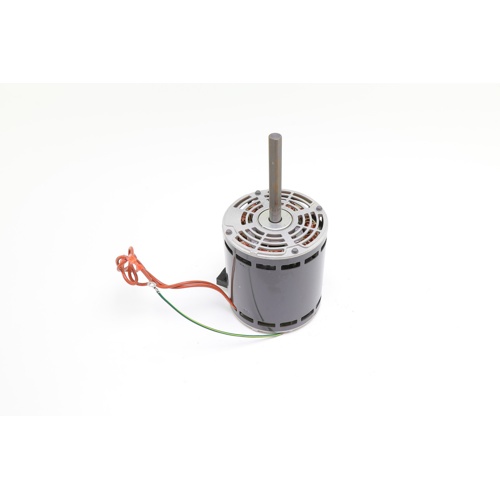

The International Comfort Products 1054586 is a direct-replacement blower motor engineered for reliable, efficient air movement in residential and light commercial HVAC systems. Built to ICP specifications, this motor delivers consistent performance across a wide range of heating and cooling applications.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Amperage: 6 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Performance Specifications
- Horsepower: 1 HP
- Speed: 1100 RPM
- Number of Speeds: 4
- Rotation: Counter-Clockwise (CCW)
Mechanical Specifications
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Band Mount
Key Features
- Permanent Split Capacitor (PSC) design for smooth, efficient operation
- 4-speed versatility allows precise airflow matching to system requirements
- 48 NEMA frame ensures broad compatibility with standard blower housings
- Sleeve bearing construction provides quiet, low-maintenance operation
- Band mount design simplifies installation and replacement
- CCW rotation pre-configured to match OEM blower wheel orientation
- Genuine International Comfort Products OEM part for assured fit and function
Application
Designed as an OEM replacement for International Comfort Products air handlers and furnaces, the 1054586 blower motor is the trusted choice for HVAC technicians seeking a direct-fit solution. Its 208–230V single-phase rating makes it suitable for standard residential electrical systems, while the 4-speed configuration supports flexible static pressure and airflow adjustments during commissioning or system upgrades.
