Description

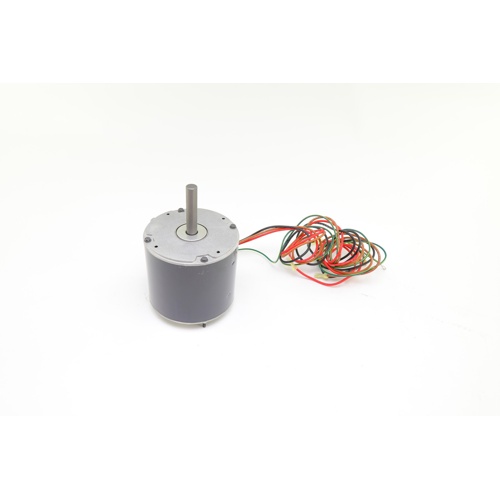

International Comfort Products 1066350 Condenser Fan Motor Overview
The International Comfort Products 1066350 is a direct OEM replacement condenser fan motor engineered for reliable, efficient performance in residential and light commercial HVAC condensing units. Built to exacting specifications, this permanent split capacitor (PSC) motor delivers consistent airflow across the condenser coil to maintain proper heat rejection and system efficiency.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Amperage: 1.8 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/2 HP
- Speed: 1,140 RPM, 1-Speed
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Band/Thru Bolt Mount
- Rotation: Counter-Clockwise (CCW)
Key Features & Benefits
- OEM-specified replacement for International Comfort Products condensing units
- Permanent Split Capacitor design for smooth, energy-efficient operation
- 1,140 RPM low-speed operation reduces noise and extends motor life
- 48 NEMA frame ensures drop-in fitment with standard mounting hardware
- Band/Thru Bolt mounting accommodates a wide range of condenser unit configurations
- Sleeve bearing construction provides quiet, low-maintenance performance
- CCW rotation engineered for proper condenser fan blade airflow direction
- 208–230V dual-voltage compatibility suits most residential and light commercial power supplies
Application
Designed as a direct OEM replacement for International Comfort Products (ICP) condensing units, this motor is ideal for HVAC technicians performing condenser fan motor replacements. The 48 NEMA frame and band/thru bolt mount make installation straightforward, minimizing downtime on service calls.
