Description

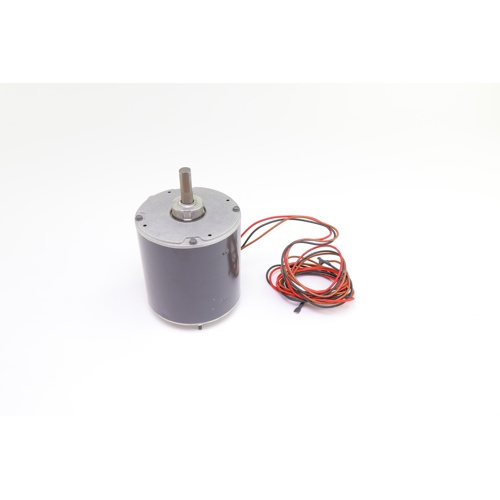

The International Comfort Products 1070461 is a direct-replacement condenser fan motor engineered for reliable, efficient operation in residential and light-commercial air conditioning systems. Built to exacting OEM specifications, this motor delivers consistent airflow across the condenser coil to maintain peak system efficiency and protect compressor life.
Electrical Specifications
- Horsepower: 3/4 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 3.5 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 1100 RPM, 1 Speed
- NEMA Frame Size: 48
- Bearing Type: Ball Bearing
- Rotation: Counter-Clockwise (CCW), viewed from shaft end
- Mounting Style: Band/Thru Bolt Mount
Key Features & Benefits
- Permanent Split Capacitor (PSC) design for smooth, energy-efficient starting and running performance
- Ball bearing construction provides long service life and reduced friction under continuous outdoor operation
- Band/Thru Bolt mounting accommodates a wide range of condenser unit configurations for easy installation
- Standard 48 NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket applications
- 208–230V dual-voltage rating suits the most common residential and light-commercial power supplies
- CCW rotation engineered to match original ICP condenser fan blade pitch and airflow direction
Application
Designed as an OEM-quality replacement for International Comfort Products condensing units, the 1070461 motor is ideal for HVAC technicians performing scheduled maintenance or emergency service repairs. Always verify rotation direction, frame size, and capacitor rating before installation.
