Description

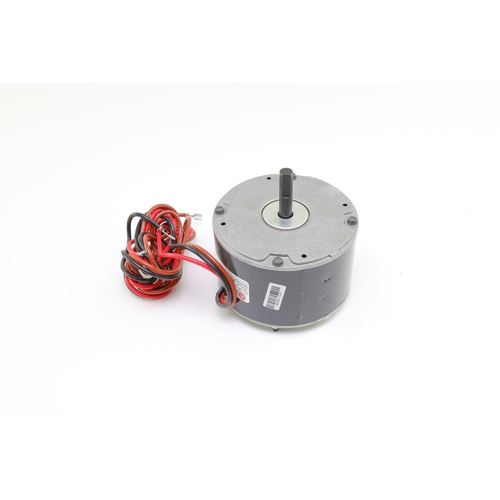

The International Comfort Products 1085927 is a replacement condenser fan motor engineered for reliable, efficient operation in residential and light commercial air conditioning systems. Built to exacting OEM specifications, this permanent split capacitor (PSC) motor delivers consistent airflow performance and long service life.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Full Load Amps: 1.3 A
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/5 HP
- Speed: 1,075 RPM
- Number of Speeds: 1
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Rotation: Clockwise (CW), viewed from shaft end
- Mounting Style: Band/Thru Bolt Mount
Key Features
- Direct OEM replacement for compatible International Comfort Products systems
- Permanent split capacitor design for smooth, energy-efficient starting and running
- 48 NEMA frame ensures broad cross-compatibility with standard condenser motor applications
- Sleeve bearing construction provides quiet operation and reduced maintenance requirements
- Band/thru bolt mounting accommodates a wide range of condenser unit configurations
- Clockwise rotation (CW) for proper condenser fan blade airflow direction
- Single-speed operation for straightforward installation and control
Application
Designed as a direct replacement condenser fan motor for International Comfort Products (ICP) equipment, this motor is ideal for HVAC technicians performing routine maintenance or emergency replacements on residential and light commercial condensing units. Its standard 48 NEMA frame and band/thru bolt mounting make installation straightforward, minimizing downtime in the field.
