Description

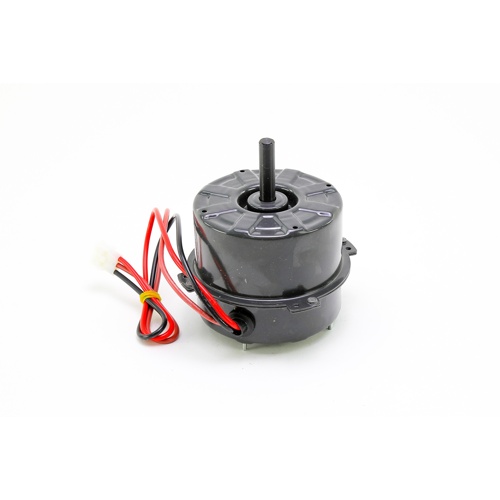

International Comfort Products 1086485 Condenser Fan Motor Overview
The International Comfort Products 1086485 is an OEM replacement condenser fan motor engineered for reliable, efficient performance in residential and light commercial air conditioning applications. Featuring a Permanent Split Capacitor (PSC) design, this motor delivers consistent torque and smooth single-speed operation, making it a dependable choice for condenser unit replacements.
Electrical Specifications
- Horsepower: 1/8 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 0.93 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 1,075 RPM
- Number of Speeds: 1
- NEMA Frame Size: 42
- Bearing Type: Sleeve Bearing
- Mounting Style: Thru Bolt Mount
- Rotation: Clockwise (CW)
Key Features
- Permanent Split Capacitor design for efficient, quiet single-speed operation
- 42 NEMA frame for broad compatibility with standard condenser unit housings
- Sleeve bearing construction for smooth, low-maintenance performance
- Thru bolt mounting for secure, vibration-resistant installation
- Clockwise rotation matches OEM condenser fan blade requirements
- 208–230V rating compatible with standard residential and light commercial power supplies
Application
Designed as a direct OEM replacement for International Comfort Products (ICP) condensing units, this motor is ideal for HVAC technicians performing condenser fan motor replacements. The 42 NEMA frame and thru bolt mount ensure straightforward installation with minimal modification required.
