Description

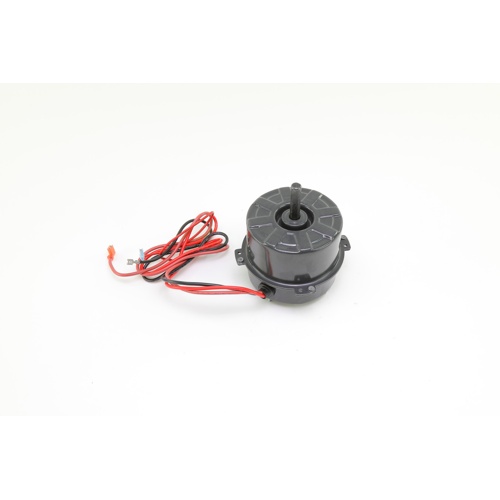

The International Comfort Products 1088235 is a direct-replacement condenser fan motor engineered for reliable, efficient operation in residential and light-commercial air conditioning systems. Built to OEM specifications, this motor delivers consistent airflow across the condenser coil to maintain proper heat rejection and system efficiency.
Electrical Specifications
- Voltage: 208–230 VAC
- Phase: Single Phase
- Full-Load Amps: 1.08 A
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1
Mechanical Specifications
- Horsepower: 1/5 HP
- Speed: 1,075 RPM
- NEMA Frame Size: 42
- Bearing Type: Sleeve Bearing
- Mount Style: Thru Bolt
- Rotation: Clockwise (CW), viewed from shaft end
Key Features
- OEM-matched replacement for International Comfort Products equipment
- Permanent Split Capacitor design for smooth, energy-efficient starting and running
- 42 NEMA frame ensures drop-in dimensional compatibility
- Sleeve bearing construction for quiet operation
- Thru bolt mounting for secure, vibration-resistant installation
- Single-speed operation simplifies wiring and controls
Application
Designed as a factory-matched replacement for ICP condensing units, this motor is ideal for HVAC technicians performing routine maintenance or emergency service calls. The thru bolt mount and standard 42 NEMA frame allow for straightforward installation with minimal downtime.
