Description

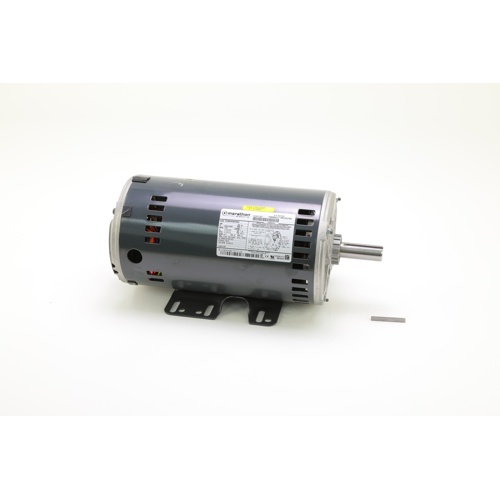

International Comfort Products 1171341 Blower Motor Overview
The International Comfort Products 1171341 is a heavy-duty OEM replacement blower motor engineered for demanding commercial and industrial HVAC applications. Delivering 3½ horsepower with three-phase power compatibility, this motor is built to provide reliable, consistent airflow performance in air handling and blower systems where dependability is non-negotiable.
Key Specifications
- Horsepower: 3½ HP
- Voltage: 208-230/460 Vac (dual voltage)
- Phase: Three Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 10.2 A (low voltage) / 4.8 A (high voltage)
- NEMA Frame Size: 56HZ
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Performance & Design Features
- Dual-voltage design (208-230/460 Vac) provides installation flexibility across a wide range of commercial electrical systems
- Three-phase operation delivers smooth, efficient power for continuous-duty blower applications
- 1725 RPM operating speed ensures optimal airflow output for matched HVAC equipment
- Ball bearing construction reduces friction and wear, extending motor service life and minimizing maintenance requirements
- Rigid mount configuration offers a secure, vibration-resistant installation
- Reversible rotation allows field configuration to match system airflow direction requirements
- 56HZ NEMA frame provides industry-standard mounting dimensions for straightforward OEM replacement
Application
Designed as a direct OEM replacement for International Comfort Products equipment, the 1171341 blower motor is ideal for commercial air handlers, fan coil units, and large-capacity blower assemblies. Its three-phase, dual-voltage capability makes it well-suited for light commercial and commercial HVAC installations requiring dependable, high-output motor performance.
Why Choose the ICP 1171341?
- Genuine International Comfort Products OEM part for assured fit and compatibility
- Dual-voltage flexibility reduces the need for additional transformers or rewiring
- Reversible rotation simplifies installation and field adjustments
- Ball bearing construction supports long-term, low-maintenance operation
- Standard NEMA 56HZ frame ensures compatibility with existing motor mounts
