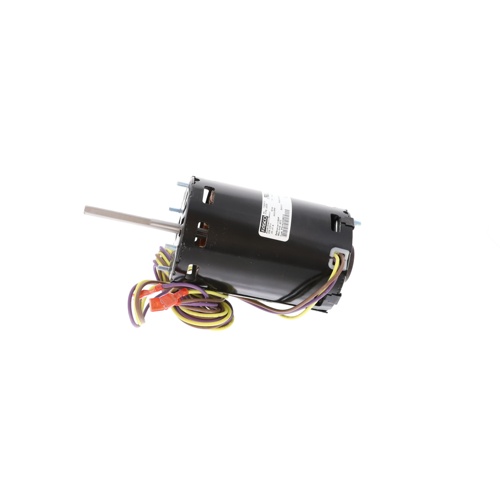

International Comfort Products 1171348 Inducer Motor Overview
The International Comfort Products 1171348 is an OEM-grade draft inducer motor engineered for reliable combustion air management in residential and light-commercial heating systems. Designed as a direct replacement for compatible ICP, Heil, Tempstar, and Arcoaire furnace platforms, this motor delivers consistent performance season after season.
Electrical Specifications
- Horsepower: 1/16 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 0.57 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1
Mechanical Specifications
- Speed: 3450 RPM
- Rotation: Clockwise (CW) — viewed from shaft end
- Bearing Type: Ball Bearing for extended service life and reduced friction
- Mounting Style: Thru Bolt Mount for secure, vibration-resistant installation
Key Features & Benefits
- Permanent Split Capacitor (PSC) design provides efficient, smooth single-speed operation
- Ball bearing construction minimizes wear and supports long operational life
- Thru bolt mounting ensures a rigid, stable fit in inducer blower assemblies
- CW rotation (shaft end) matches OEM inducer wheel orientation for drop-in replacement
- 208–230V dual-voltage compatibility suits a wide range of residential HVAC applications
- Compact 1/16 HP rating optimized for inducer draft applications
Application
This inducer motor is used to drive the draft inducer blower assembly in forced-air gas furnaces. It creates the negative pressure needed to pull combustion gases through the heat exchanger and safely exhaust them through the flue, ensuring proper combustion and safe furnace operation. It is a factory-matched replacement for International Comfort Products furnace models requiring SKU 1171348.
Why Choose OEM Replacement Parts?
Using genuine or OEM-equivalent replacement motors like the ICP 1171348 ensures proper fit, correct electrical characteristics, and validated performance — reducing callbacks and warranty concerns for HVAC contractors.
