Description

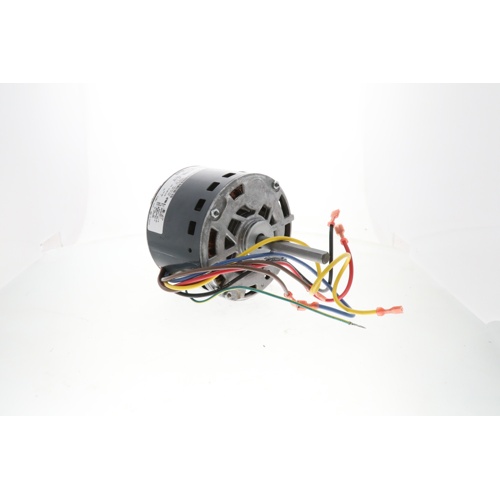

International Comfort Products 1171723 Blower Motor Overview
The International Comfort Products 1171723 is a direct-replacement OEM blower motor engineered for reliable, efficient air movement in residential and light commercial HVAC systems. Built to exacting ICP specifications, this permanent split capacitor (PSC) motor delivers consistent multi-speed performance and long service life in demanding heating and cooling applications.
Electrical Specifications
- Horsepower: 1/3 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 2.4 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 1075 RPM, 3-Speed
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Band Mount
- Rotation: Counter-Clockwise (CCW)
Key Features & Benefits
- OEM-grade quality for direct compatibility with International Comfort Products equipment
- Permanent Split Capacitor design provides smooth, quiet multi-speed operation
- Three selectable speeds allow precise airflow matching to system requirements
- 48 NEMA frame ensures straightforward drop-in replacement
- Sleeve bearing construction offers quiet, low-maintenance operation
- Band mount design simplifies installation and secure positioning
- Counter-clockwise rotation engineered to match original equipment airflow direction
- 208–230V single-phase rating suits standard residential and light commercial power supplies
Application
Designed as a factory-spec replacement for International Comfort Products air handlers, furnaces, and fan coil units. The 1171723 blower motor restores original system performance, ensuring proper airflow delivery, energy efficiency, and equipment longevity. Always verify rotation, frame size, and mounting style against your existing unit before installation.
