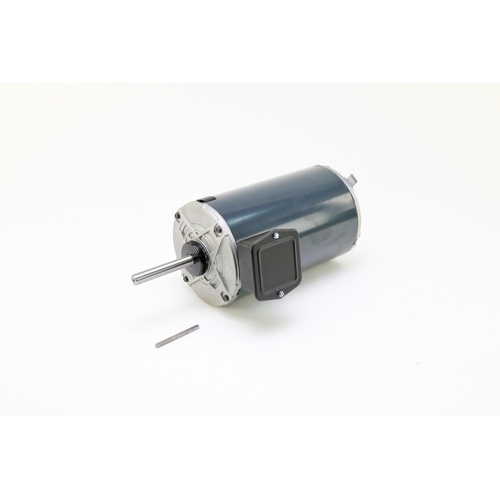

International Comfort Products 1171869 Condenser Fan Motor
The International Comfort Products 1171869 is a heavy-duty condenser fan motor engineered for reliable, long-service-life performance in commercial and residential HVAC condensing units. Designed to meet demanding operational requirements, this motor delivers consistent airflow and efficient heat rejection across a wide range of applications.
Key Features
- Voltage: 208-230/460 Vac — dual-voltage design for flexible installation across single- and three-phase electrical systems
- Phase: Three Phase
- Speed: 1140 RPM, single speed
- Current Draw: 6.4 Amps (208-230V) / 3.2 Amps (460V)
- Bearing Type: Ball Bearing — provides smooth, low-friction operation and extended motor life
- Mounting Style: Band Mount — simplifies installation and secure positioning in condenser unit housings
- Rotation: Counter-Clockwise (CCW) — as viewed from the shaft end
Design & Construction
The ball bearing construction ensures reduced wear and longer operational life compared to sleeve-bearing alternatives, making this motor well-suited for continuous-duty condenser fan applications. The band mount design allows for straightforward field installation and replacement without the need for specialized tooling.
Application
- Direct OEM replacement for compatible International Comfort Products condensing units
- Suitable for commercial and light-commercial HVAC systems requiring three-phase condenser fan motors
- Ideal for applications where dual-voltage flexibility (208-230/460V) is required
Specifications Summary
- SKU: 1171869
- Brand: International Comfort Products
- Voltage: 208-230/460 Vac
- Phase: Three Phase
- Speed: 1140 RPM
- Number of Speeds: 1
- Full Load Amps: 6.4A (208-230V) / 3.2A (460V)
- Bearing: Ball Bearing
- Mount: Band Mount
- Rotation: CCW (Counter-Clockwise)
