Description

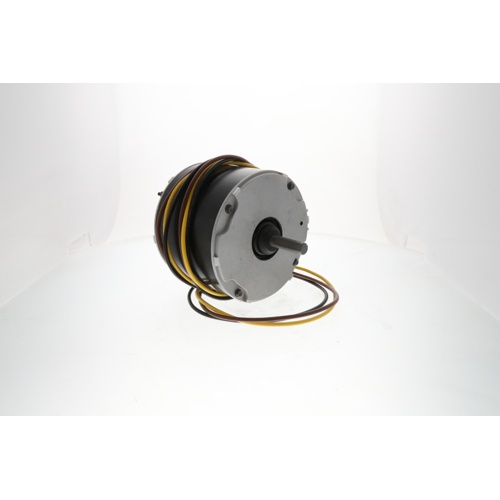

The International Comfort Products 1175525 is a direct-replacement condenser fan motor engineered for reliable, efficient operation in commercial and residential HVAC condensing units. Built to OEM specifications, this motor delivers consistent airflow performance and long service life in demanding outdoor environments.
Motor Specifications
- Horsepower: 1/4 HP
- Voltage: 460 Vac
- Phase: Single Phase
- Speed: 1,100 RPM
- Number of Speeds: 1
- Full Load Amps: 0.8 A
- NEMA Frame Size: 48
- Motor Type: Permanent Split Capacitor (PSC)
- Rotation: Clockwise (CW), viewed from shaft end
Construction & Mounting
- Bearing Type: Sleeve Bearing — quiet operation and low maintenance
- Mounting Style: Thru Bolt Mount for secure, vibration-resistant installation
- NEMA 48 frame ensures broad cross-reference compatibility with OEM and aftermarket applications
Key Benefits
- OEM-matched replacement for International Comfort Products condensing units
- Permanent Split Capacitor design provides smooth starting and efficient continuous-duty operation
- Single-speed, single-phase configuration simplifies wiring and control
- Sleeve bearing construction reduces noise and extends motor life in condenser fan applications
- Thru bolt mounting allows straightforward drop-in replacement with minimal downtime
Application
Designed as a factory-matched condenser fan motor replacement for International Comfort Products HVAC systems, the 1175525 is ideal for service technicians and contractors seeking a reliable, specification-correct part. The 460 Vac single-phase rating suits commercial equipment configurations, while the 48 NEMA frame and thru bolt mount ensure compatibility across a wide range of ICP condensing unit models.
