Description

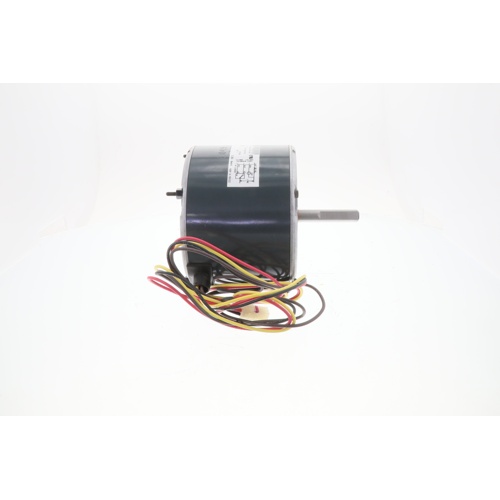

The International Comfort Products 1179379 is a precision-engineered OEM condenser fan motor designed as a direct replacement for compatible ICP, Heil, Tempstar, and related brand HVAC systems. Built to deliver reliable, long-lasting performance in demanding outdoor condenser applications, this motor features a Permanent Split Capacitor (PSC) design for smooth, efficient operation.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Amperage: 0.45 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/12 HP
- Speed: 820 RPM, 2-Speed
- NEMA Frame Size: 48
- Bearing Type: Ball Bearing
- Mounting Style: Thru Bolt Mount
- Rotation: Clockwise (CW)
Key Features
- OEM-quality replacement motor for International Comfort Products systems
- Ball bearing construction for reduced friction and extended service life
- 2-speed operation provides flexible airflow control
- Thru bolt mount design simplifies installation and replacement
- 48 NEMA frame ensures broad compatibility with standard condenser motor housings
- PSC motor design delivers energy-efficient, quiet operation
- Clockwise rotation matches original OEM specifications
Application
This condenser fan motor is engineered for use in residential and light commercial air conditioning condensing units. The 2-speed capability allows the system to modulate airflow based on demand, improving efficiency and comfort. Its ball bearing construction and robust PSC design make it well-suited for continuous-duty outdoor environments.
