Description

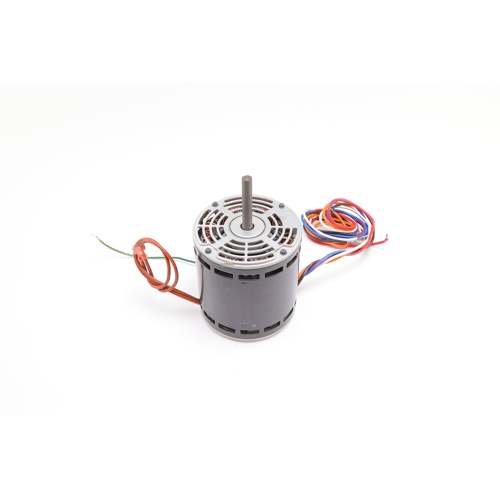

The International Comfort Products 8069620 is a heavy-duty replacement blower motor engineered for reliable, efficient airflow in residential and light commercial HVAC systems. Built to exacting OEM specifications, this permanent split capacitor (PSC) motor delivers consistent multi-speed performance and is a direct fit for compatible ICP equipment.
Electrical Specifications
- Voltage: 115VAC, Single Phase
- Horsepower: 3/4 HP
- Amperage: 14.9 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Performance Specifications
- Speed: 1000 RPM
- Number of Speeds: 4
- Rotation: Clockwise (CW)
Mechanical Specifications
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Band Mount
Key Features
- OEM replacement part from International Comfort Products
- 4-speed operation for flexible airflow control
- Permanent split capacitor design for smooth, efficient starting and running
- Sleeve bearing construction for quiet, low-maintenance operation
- Band mount design simplifies installation and replacement
- Clockwise rotation ensures correct airflow direction in compatible blower assemblies
- Standard 48 NEMA frame for broad compatibility
The ICP 8069620 blower motor is the trusted OEM solution for maintaining peak system performance. Its 4-speed capability allows the system to match airflow to heating and cooling demands, improving comfort and efficiency. The sleeve bearing design minimizes noise during operation, while the band mount configuration makes installation straightforward for HVAC technicians.
