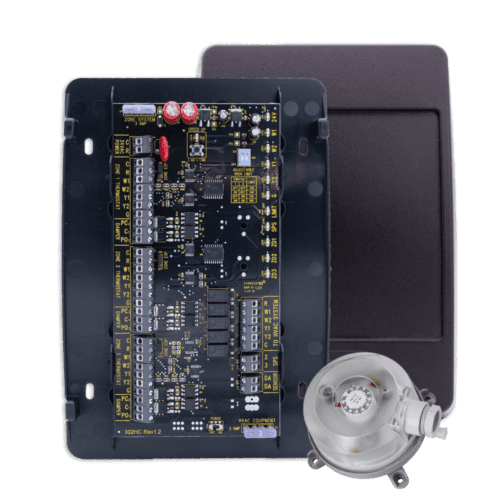

iO HVAC Controls ZP3-HCMS-ESP 3-Zone Multi-Stage 2H/2C Zone Panel

BRAND: iO HVAC Controls SKU: ZP3-HCMS-ESP

$341.95

MSRP: $393.24
You save 13%

3-Zone Multi-Stage Heat / Cool Zone Control Panel with ESP

Free Shipping
Ships Next Business Day
Availability:

62 In Stock

Description

Our ESP zone panels integrate our 2 and 3 zone panels with our award-winning ESP (Electronic Static Pressure), technology. Each panel comes with a static pressure sensor. As zone dampers open and close, the static pressure sensor continuously monitors the system static pressure. If the static pressure goes above the static pressure setpoint, the panel will send a signal to the selected non-calling zone dampers to begin opening to a point where the static pressure setpoint is maintained. This eliminates the need for a conventional bypass damper.
The ZP2-HC-ESP is a single-stage hevat/cool zone panel designed to control 2 zones in residential and light commercial applications. The ZP3-HPS-ESP model is designed to fit 3 zone applications for heat pump or dual fuel systems in residential and light commercial applications. The ZP3-HCMS-ESP model is designed to fit 3 zone applications for multi-stage heating and cooling in residential and light commercial applications. Metal Enclosure (iO-PAN-ME) available as an additional option on iO Zone Panels.
Features:
  • Built-in static pressure control eliminates the need for a bypass damper
  • Auto changeover
  • First call priority with time share
  • LED status indication
  • Independent fan control by zone
  • Short cycle protection
  • Competitively priced
  • Works with 2 or 3 wire zone dampers*
  • Adjustable high limit
  • Adjustable high and low balance point (HPS)



Features and Benefits



  • Easy to Install
  • First call priority with time share
  • LED status indication
  • Uses standard 3-wire zone dampers
  • Factory set (easy to adjust)
  • Prevents coil freeze-up
  • Eliminates air noise
  • Eliminates tight space issues
  • 10-year warranty

Additional information

Construction

Aluminum Back Plate, Mounting Holes

Operating Temperature

-40?F to 150?F

Mounting Bracket Type

Snap track with 2 back plate screws

UPC 840119900460
