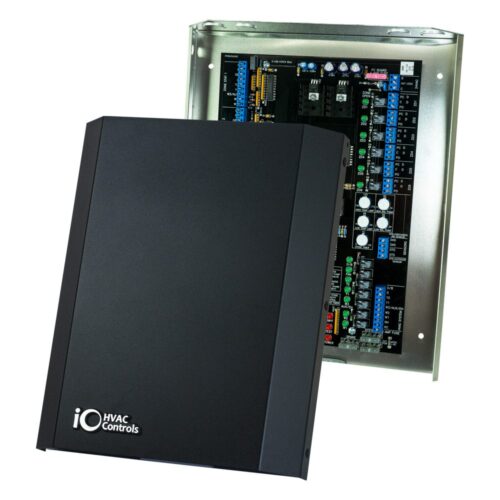

iO HVAC Controls ZP6 6-Zone Universal 3H/2C Zone Panel

BRAND: iO HVAC Controls SKU: ZP6

(1 customer review)


MSRP: $604.36
You save 15%

6-Zone Universal Zone Control Panel


Ships By September 11


The Most Contractor-Friendly Zoning System on the Market

The Z-600™ Comfort System™ is a six zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single stage, multi-stage, and heat pump equipment as well as dual fuel systems having up to 3 stages of heating and 2 stages of cooling. Slide switch system configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.

Unique Features
• 6 zones, expandable to 12
• Priority cooling or majority wins control sequence
• 20 minute time share option
• On-board adjustable high and low limits and high and low
balance points
• Staging by zone thermostat or by adjustable stage timer


Standard Features

• Heat/Cool, heat pump or dual fuel up to 3 heat / 2 cool
• Gas or electric fan control
• Choice of all zones or individual zone fan control
• Selectable 1 minute purge cycle
• Staging by zone thermostat or by adjustable stage timer
• Time delay speed up mode with auto rest
• Fused protected inputs and outputs
• Easy-to-read dedicated wiring terminals


Features and Benefits

  • 6 zones expandable to 12
  • Auto changeover
  • Priority cooling or majority wins
  • Twenty minute time share option
  • LED status indication
  • On-board adjustable high and low limits and balance points
  • Staging by zone thermostat or adjustable staging timer
  • Purge cycle option
  • Competitively priced
  • 10-year warranty

Additional information



Fan Mode

Purge Cycle

Adjustable Limits

High Balance Point (55° to 70° F), High Limit (100° to 175° F), Low Balance Point (0° to 50° F), Low Limit (40° to 58° F)

Operating Temperature


Mounting Bracket Type

UPC 840119900514
