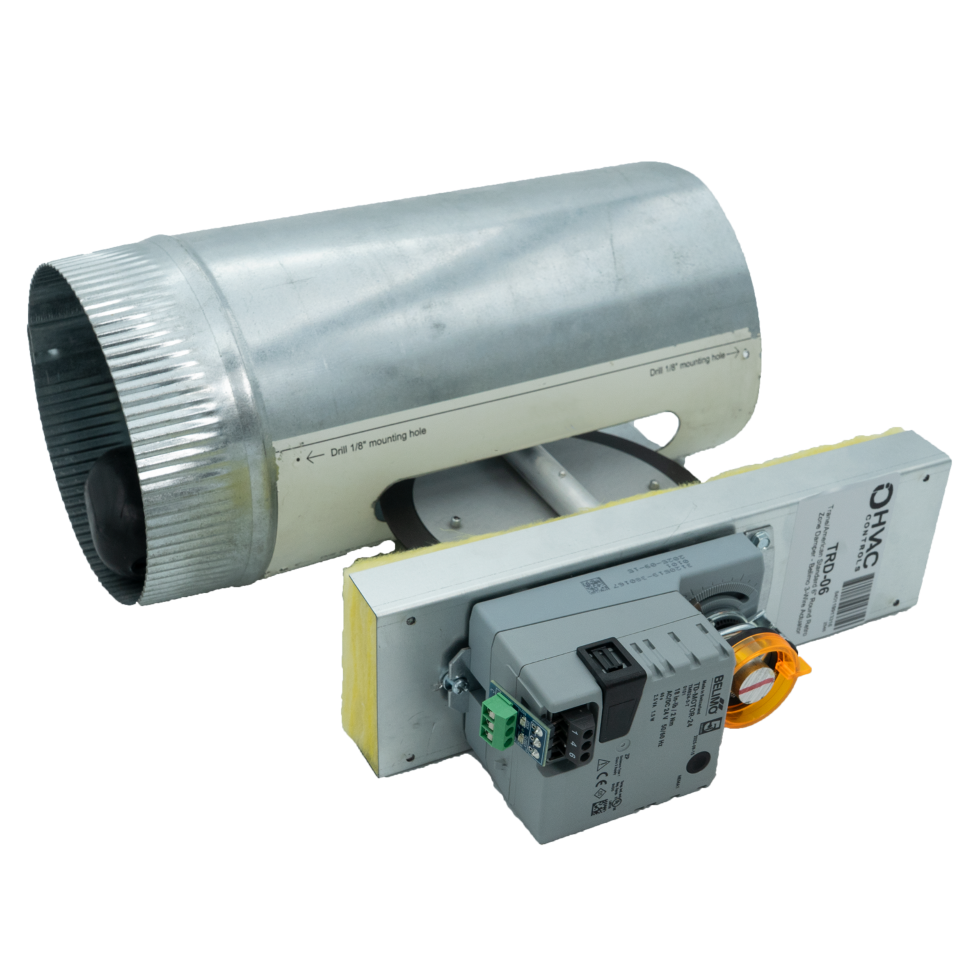

iO HVAC Controls TRD-XX 3-Wire Retro Damper for Trane & American Standard

Description

Purpose-Built Zoning Control for Trane & American Standard Systems

Add professional-grade zoning control to Trane ComfortLink and American Standard AccuLink communicating HVAC systems with the iO HVAC Controls TRD-XX 3-Wire Retro Damper. Engineered specifically for the proprietary 3-wire zone control protocol used by Trane and American Standard, the TRD-XX delivers a true drop-in, factory-compatible damper solution — eliminating adapters, rewiring, and protocol workarounds that slow down installations and create callbacks.

Unlike universal dampers that require complex adapter boards, the TRD-XX uses the native 3-wire control sequence (Common, Close, Open) recognized by Trane ComfortLink and American Standard AccuLink zone panels, making installation and commissioning fast, clean, and reliable. An 18-gauge steel blade, 5/8″ solid aluminum shaft, and airtight blade seals deliver durable, whisper-quiet operation with maximum zone isolation — ensuring conditioned air goes precisely where it’s called for.

The factory-installed 24V actuator delivers 18 lb-in of torque with a 60-second full stroke cycle for smooth, positive damper positioning. An integrated LED position indicator gives technicians instant visual confirmation of damper status during start-up and service calls, while a built-in minimum position adjustment enables field-tuned bleed airflow for static pressure management — a critical feature in high-static zoning applications.

Available in six standard round duct sizes — 5″, 6″, 7″, 8″, 9″, and 10″ — the TRD-XX covers the full range of residential and light commercial zoning branch runs, making it the ideal single-line specification for every Trane and American Standard zoning job.

Key Features

• Native Trane ComfortLink & American Standard AccuLink Compatibility — engineered to match the proprietary 3-wire protocol with no adapters, rewiring, or protocol translation required
• True 3-Wire Control (Common / Close / Open) — clean, simple terminals (1-Comm, 2-Close, 3-Open) streamline installation and reduce commissioning errors
• Six Standard Round Sizes (5″–10″) — one damper family covers virtually every branch duct size in residential and light commercial zoning systems
• 18-Gauge Steel Blade Construction — heavy-duty blade resists warping and corrosion for long service life in demanding ducted environments
• 5/8″ Solid Aluminum Shaft — precision-machined, corrosion-resistant shaft ensures reliable, long-term actuator engagement with no play or drift
• Airtight Blade Seals — premium seals minimize leakage in the closed position, maximizing zone isolation and comfort efficiency
• 18 lb-in Actuator Torque — strong torque output ensures positive damper movement against typical static pressures in residential and light commercial ducting
• 60-Second Full Stroke Timing — smooth, controlled open/close cycle reduces duct noise, eliminates blade slam, and extends seal service life
• LED Position Indication — on-board LED provides immediate visual status for commissioning, troubleshooting, and routine service
• Built-In Minimum Position Adjustment — field-adjustable bleed setting manages static pressure and prevents equipment short-cycling and duct noise
• 24V / 2.5 VA Low-Voltage Operation — minimal current draw supports multi-damper installations without transformer upgrades
• Retrofit & New-Construction Ready — Retro Damper design installs into existing round ducts for retrofits or serves as a first-line specification for new zoning builds

Applications

• Trane ComfortLink zoning systems — new construction, retrofit, and replacement dampers
• American Standard AccuLink zoning systems — matched-brand zoning installations
• Multi-zone residential homes — 2-zone to multi-zone builds with round branch ductwork
• Light commercial zoning — small offices, retail suites, and multi-use spaces on Trane/American Standard communicating platforms
• Service replacements — swapping failed OEM dampers without replacing the zone panel
• Custom and luxury home builds — where Trane or American Standard equipment is specified with integrated zoning
• Multi-story home comfort zoning — upstairs/downstairs temperature separation with communicating thermostats
