Description

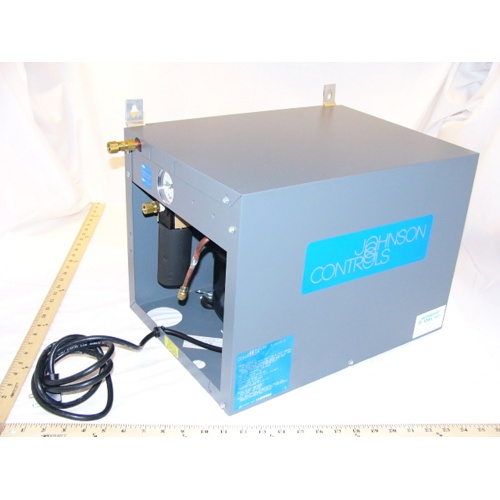

Johnson Controls A-4412-2 Refrigerated Air Dryer Overview
The Johnson Controls A-4412-2 is a refrigerated air dryer engineered specifically for pneumatic control systems. By removing moisture from compressed air lines, this unit protects downstream pneumatic controls, actuators, and instruments from corrosion, freeze-ups, and performance degradation. Its hermetically sealed refrigeration circuit ensures reliable, low-maintenance operation in demanding commercial and industrial HVAC environments.
Key Features
- Designed for pneumatic control system air supply applications
- Hermetically sealed refrigeration compressor for long service life and minimal maintenance
- R-134a refrigerant — environmentally responsible and widely available
- 12 SCFM air flow capacity to support a broad range of pneumatic control installations
- 125 PSIG maximum input pressure rating for compatibility with standard compressed air systems
- 3/8″ compression fittings compatible with both polytubing and copper tubing for flexible installation
- 115 VAC power supply for easy connection to standard single-phase electrical service
Specifications
- SKU: A-4412-2
- Brand: Johnson Controls
- Type: Refrigerated Air Dryer
- Application: Pneumatic Control Systems
- Voltage: 115 VAC
- Refrigerant: R-134a
- Compressor Type: Hermetically Sealed
- Maximum Input Pressure: 125 PSIG
- Air Flow Capacity: 12 SCFM
- Connection Size: 3/8″ Compression Fittings
- Tubing Compatibility: Polytubing or Copper Tubing
Why Choose the Johnson Controls A-4412-2?
Moisture in pneumatic control air lines is one of the leading causes of system failure, valve damage, and erratic control behavior. The A-4412-2 refrigerates the incoming compressed air to condense and remove water vapor before it can reach sensitive pneumatic controls. The result is cleaner, drier instrument air that extends equipment life and improves system reliability. With 3/8″ compression fittings accepting both polytubing and copper tubing, installation is straightforward and adaptable to existing infrastructure.
