Description

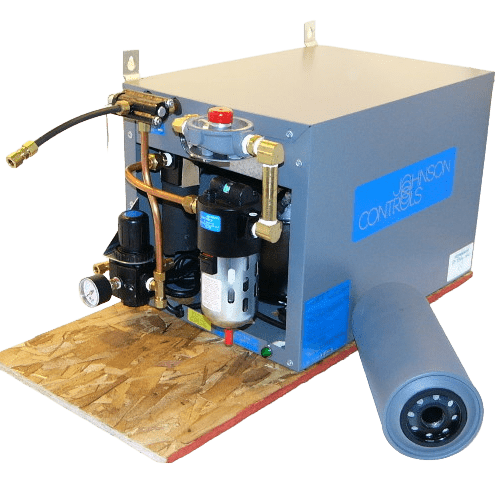

The Johnson Controls A-4417-1 is a refrigerated air dryer engineered specifically for pneumatic control systems, delivering clean, dry, conditioned air to protect downstream equipment and ensure reliable system performance. With a hermetically sealed design and R-134a refrigerant, this unit offers efficient, low-maintenance operation in commercial and industrial HVAC applications.
Key Features
- Designed for pneumatic control systems — removes moisture and contaminants from compressed air supply
- Hermetically sealed refrigeration circuit for reliable, leak-resistant operation
- R-134a refrigerant — environmentally responsible and widely available
- 115 VAC power supply for straightforward electrical integration
- 17 SCFM airflow capacity to support a wide range of pneumatic control applications
- 125 PSIG maximum input pressure rating
- 3/8″ compression fittings compatible with both polytubing and copper tubing for flexible installation
- Integrated air purification system for superior air quality
Specifications
- SKU: A-4417-1
- Brand: Johnson Controls
- Voltage: 115 VAC
- Refrigerant: R-134a
- Airflow Capacity: 17 SCFM
- Maximum Input Pressure: 125 PSIG
- Connection Type: 3/8″ Compression Fittings
- Tubing Compatibility: Polytubing or Copper Tubing
- Refrigeration Design: Hermetically Sealed
- Application: Pneumatic Control Systems / Air Purification
Why Choose the Johnson Controls A-4417-1?
Moisture in pneumatic control air lines can cause corrosion, erratic valve operation, and costly system failures. The A-4417-1 refrigerated air dryer actively cools the compressed air supply to condense and remove water vapor before it reaches sensitive pneumatic controls, actuators, and valves. The hermetically sealed compressor eliminates refrigerant leak points, reducing maintenance demands and extending service life. With 3/8″ compression fittings, installation is straightforward with standard polytubing or copper tubing — no special adapters required. At 17 SCFM and a 125 PSIG maximum input pressure, this dryer is well-suited for medium-capacity pneumatic control networks in commercial buildings, industrial facilities, and institutional environments.
