Description

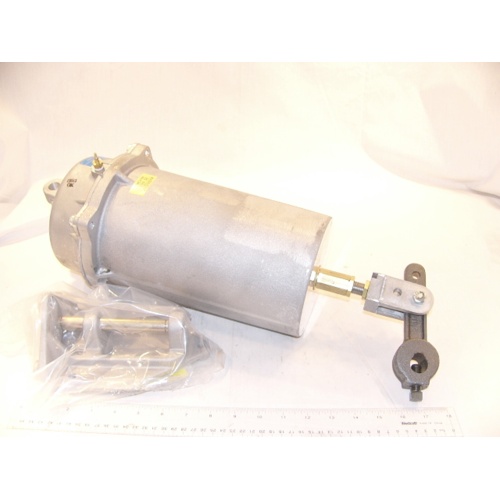

The Johnson Controls D-3246-5100 is a heavy-duty pneumatic damper actuator engineered for precise, reliable damper positioning in commercial HVAC and building automation systems. Featuring a robust die cast aluminum body, this actuator delivers consistent performance in demanding environments where accurate airflow control is critical.
Key Features
- Spring range: 8–13 PSI for dependable fail-safe return positioning
- 6″ stroke for broad damper travel and accurate modulation
- 23.4″ diaphragm for powerful, consistent actuation force
- Maximum control air pressure: 25 PSI
- Maximum air consumption: 2 SCIM for efficient pneumatic operation
- 1/8″ NPT barbed fitting for easy pneumatic line connection
- Die cast aluminum body for durability and corrosion resistance
- Compatible with 4″ Hi and 5″ damper applications
Application
The D-3246-5100 is designed for use with 4″ Hi and 5″ damper assemblies in commercial HVAC systems. It is ideal for variable air volume (VAV) systems, economizers, and other pneumatically controlled damper applications where reliable spring-return actuation and precise stroke control are required.
Specifications
- Brand: Johnson Controls
- SKU: D-3246-5100
- Actuator Type: Pneumatic / Diaphragm
- Spring Range: 8–13 PSI
- Stroke: 6″
- Diaphragm Size: 23.4″
- Maximum Control Air Pressure: 25 PSI
- Maximum Air Consumption: 2 SCIM
- Port Connection: 1/8″ NPT Barbed Fitting
- Body Material: Die Cast Aluminum
