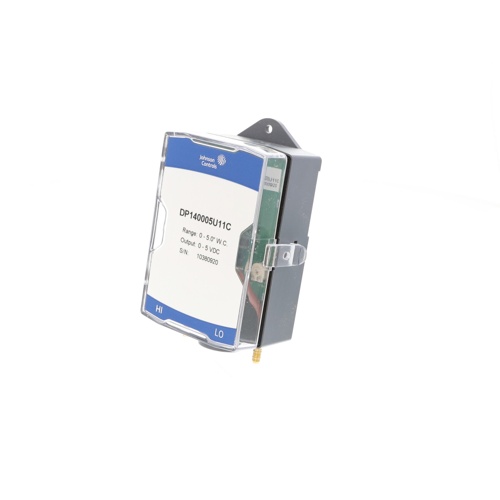

Johnson Controls DP140005U11C Low Differential Pressure Transducer Overview
The Johnson Controls DP140005U11C is a precision low differential pressure transducer engineered for demanding HVAC and building automation applications. Designed to accurately measure low-range static and differential pressures, this transducer delivers reliable, repeatable performance in environments where precise airflow and pressure monitoring is critical. Its rugged IP67-rated housing ensures dependable operation even in harsh or wet conditions, making it a trusted choice for commercial and industrial installations.
Key Features
- Pressure range: 0–5 inches water column (0–5″ wc), unidirectional measurement
- Output signal: 0–5 Vdc for direct integration with building automation and control systems
- Accuracy: ±1% of full scale for precise, trustworthy readings
- Process connection: 1/4″ push-on barb fitting for quick, secure tubing attachment
- IP67-rated housing provides protection against dust ingress and temporary water immersion
- Compact, low-profile design suitable for duct, plenum, and panel mounting
- Ideal for monitoring filter status, fan performance, airflow, and clean room pressure
Technical Specifications
- SKU / Part Number: DP140005U11C
- Brand: Johnson Controls
- Pressure Range: 0–5″ wc (unidirectional)
- Output Signal: 0–5 Vdc
- Accuracy: ±1% full scale
- Process Connection: 1/4″ push-on barb fitting
- Enclosure Rating: IP67
- Measurement Type: Low differential pressure
Applications
- Air filter differential pressure monitoring
- Fan and blower performance verification
- Clean room and laboratory pressure control
- VAV (Variable Air Volume) system pressure sensing
- Building automation and energy management systems
- HVAC duct static pressure measurement
Why Choose the Johnson Controls DP140005U11C?
With its combination of high accuracy, IP67 environmental protection, and a universal 0–5 Vdc analog output, the DP140005U11C integrates seamlessly into virtually any BAS or DDC platform. The 1/4″ push-on barb fitting simplifies installation and reduces commissioning time, while the rugged housing ensures long service life in real-world mechanical room and air-handling unit environments. Trust Johnson Controls engineering to deliver consistent, accurate pressure data where it matters most.
