Description

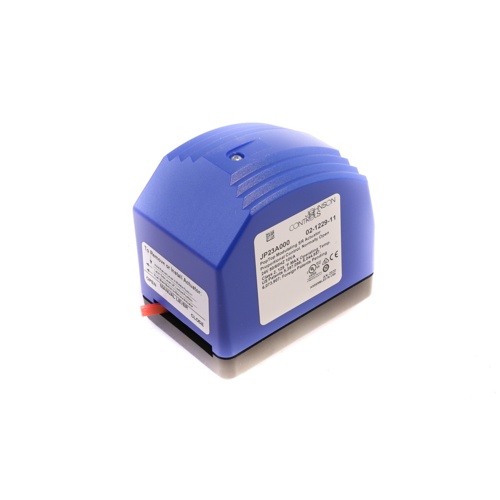

The Johnson Controls JP23A000 is a professional-grade actuator motor engineered for precise proportional control in commercial HVAC and building automation applications. Designed for reliability and flexibility, this spring return actuator defaults to the normally open position on power loss, ensuring safe and predictable system behavior.
Control Signal Compatibility
- 24VAC power supply
- 0–10 Vdc proportional control signal
- 0–5 Vdc proportional control signal
- 5–10 Vdc proportional control signal
- 4–20 mA proportional control signal
Key Features
- Spring return mechanism for fail-safe normally open operation
- Proportional control for accurate modulating performance
- No time-out function — continuous operation without reset interruption
- Wide input signal range supports integration with diverse building automation and DDC systems
- Suitable for damper and valve actuator applications in commercial HVAC systems
Application
The JP23A000 is ideal for use in variable air volume (VAV) systems, air handling units, and hydronic valve control where modulating proportional control and fail-safe spring return are required. Its multi-signal compatibility makes it a versatile drop-in solution for new installations and retrofits alike.
Product Details
- Brand: Johnson Controls
- SKU: JP23A000
- Supply Voltage: 24VAC
- Control Input: 0–10 Vdc / 0–5 Vdc / 5–10 Vdc / 4–20 mA (proportional)
- Action: Spring Return
- Default Position: Normally Open
- Time-Out: None
