Description

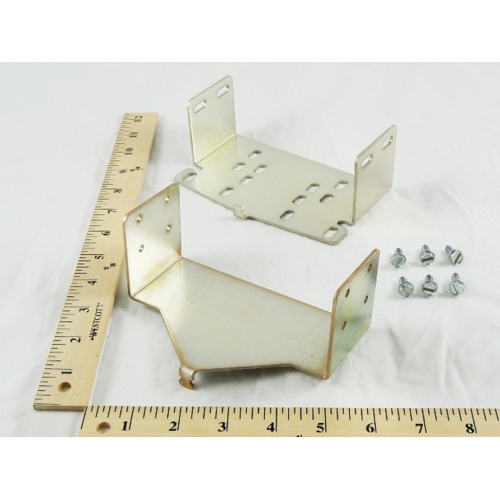

The Johnson Controls M9000-158 is a purpose-engineered mounting kit designed to tandem-mount two compatible Johnson Controls electric actuators on a single damper application. By pairing actuators in tandem, this kit effectively doubles the available torque output, making it ideal for larger damper blades or high-resistance airflow applications where a single actuator cannot provide sufficient force.
Compatible Actuator Models
- Two M9116-GGX or M9116-HGX actuators
- Two M9124-AGX, M9124-GGX, or M9124-HGX actuators
- Two M9132-AGX or M9132-GGX actuators
Key Features & Benefits
- Enables tandem mounting of two actuators on a single damper shaft for increased torque
- Engineered specifically for Johnson Controls M9116, M9124, and M9132 series actuators
- Simplifies installation with a dedicated mounting hardware solution
- Ensures proper actuator alignment and secure damper engagement
- Ideal for large-blade or high-resistance commercial damper applications
- Reduces the need for custom fabrication or field-improvised mounting solutions
Application
The M9000-158 mounting kit is well-suited for commercial HVAC systems where damper torque requirements exceed the capacity of a single actuator. Tandem mounting with this kit provides a reliable, factory-supported method to increase actuator force without upgrading to a larger actuator model. Compatible with building automation and direct digital control (DDC) systems that utilize the M9116, M9124, or M9132 actuator families.
Product Details
- Brand: Johnson Controls
- SKU: M9000-158
- Type: Tandem Actuator Mounting Kit
- Compatible Series: M9116-GGX/-HGX, M9124-AGX/-GGX/-HGX, M9132-AGX/-GGX
