Description
Overview

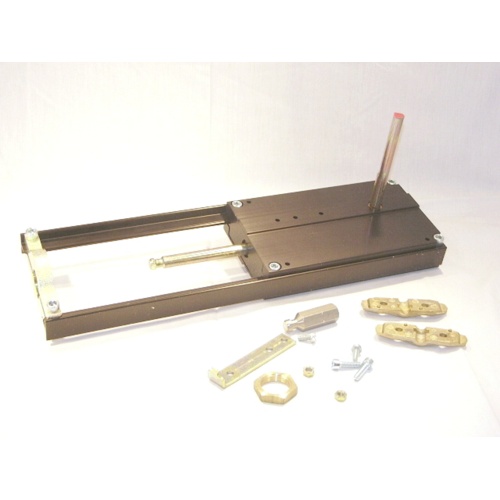

The Johnson Controls M9000-530 is a precision-engineered valve linkage kit designed to mechanically couple a single spring-return actuator to 2-1/2″ flanged iron globe valves. Purpose-built for use with the M9116, M9124, and M9220 series spring-return actuators, this linkage ensures accurate, reliable valve positioning in commercial and industrial HVAC hydronic systems.
Key Features
- Designed specifically for 2-1/2″ flanged iron globe valves
- Compatible with M9116, M9124, and M9220 single spring-return actuators
- Provides secure mechanical coupling between actuator and valve stem
- Engineered for reliable, repeatable valve positioning
- Durable construction suited for commercial and industrial HVAC applications
- Simplifies actuator mounting and alignment during installation
Compatible Actuators
- Johnson Controls M9116 Spring-Return Actuator
- Johnson Controls M9124 Spring-Return Actuator
- Johnson Controls M9220 Spring-Return Actuator
Application
The M9000-530 linkage is ideal for use in hydronic heating and cooling systems where precise control of water or glycol flow through flanged iron globe valves is required. The spring-return actuator compatibility ensures fail-safe valve operation, returning the valve to a defined position upon loss of power — a critical feature in building automation and energy management systems.
Why Choose Johnson Controls
Johnson Controls is a globally recognized leader in building automation and HVAC controls. The M9000 series linkage accessories are engineered to integrate seamlessly with Johnson Controls actuators, ensuring system-wide compatibility, long service life, and reduced installation time.
