Description

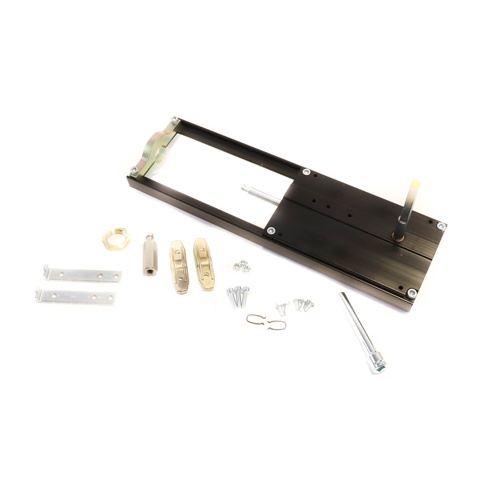

The Johnson Controls M9000-532 is a precision-engineered actuator linkage kit designed to mechanically couple tandem spring-return actuators to flanged iron globe valves in commercial and industrial HVAC hydronic systems. This linkage provides a reliable, rigid connection that ensures accurate valve positioning and consistent system performance.
Compatibility
- 3″ Flanged Iron Globe Valves — compatible with tandem M9116, M9124, or M9220 spring-return actuators
- 4″ Flanged Iron Globe Valves — compatible with tandem M9124 or M9220 spring-return actuators
Key Features
- Engineered specifically for tandem actuator configurations requiring increased torque output
- Designed for use with flanged iron globe valve bodies in hydronic heating and cooling applications
- Ensures proper mechanical alignment between actuator and valve stem for accurate modulating control
- Robust construction suited for demanding commercial HVAC environments
- Part of the Johnson Controls M9000 series actuator accessory line for consistent system integration
Applications
- Commercial building hydronic heating and cooling systems
- Air handling unit heating and cooling coil valve control
- Large-scale HVAC systems requiring high-force globe valve actuation
- Building automation and direct digital control (DDC) systems
Why Choose the M9000-532?
When a single actuator does not provide sufficient torque for larger flanged iron globe valves, tandem actuator mounting is the solution. The M9000-532 linkage makes this configuration possible, allowing two M9116, M9124, or M9220 spring-return actuators to work in tandem on 3″ or 4″ flanged iron globe valves. This results in greater force output, reliable spring-return fail-safe operation, and long service life — all backed by Johnson Controls quality engineering.
