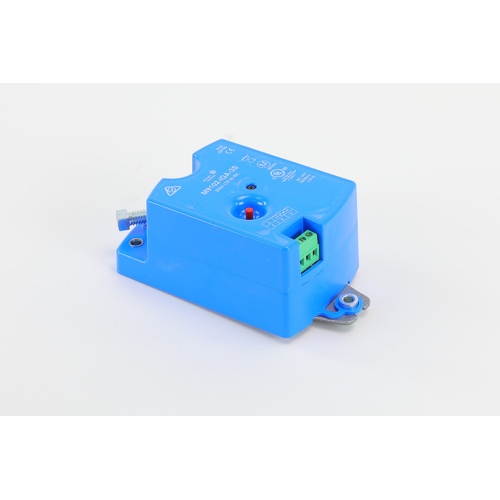

Johnson Controls M9102-IGA-3S Direct Coupled Actuator Overview
The Johnson Controls M9102-IGA-3S is a reliable, non-spring return direct coupled actuator engineered for precise damper and valve control in commercial HVAC systems. Operating on 24Vac power, this actuator supports both floating control and two-position control modes with a built-in timeout feature, offering versatile integration into a wide range of building automation and HVAC control applications. Its direct-coupled design eliminates the need for crank arms or linkages, simplifying installation and reducing maintenance requirements.
Key Features
- 24Vac operating voltage for compatibility with standard HVAC control systems
- Floating control or two-position control operation with timeout functionality
- 18 lb-in torque output for dependable damper and valve actuation
- 30-second travel time for smooth, responsive positioning
- Non-spring return design — maintains last position on power loss
- Direct coupled mounting — no linkage hardware required
- Screw terminal wiring connections for fast, secure field wiring
- Compact, robust construction suited for commercial HVAC environments
Control Modes
The M9102-IGA-3S supports two industry-standard control modes, giving installers and system designers flexibility:
- Floating Control: Allows incremental positioning via open/close signals, ideal for modulating applications
- Two-Position Control with Timeout: Drives the actuator fully open or fully closed, with a timeout function to protect the actuator and connected equipment
Installation & Mounting
- Direct coupled design mounts directly to damper or valve shaft — no crank arm or linkage required
- Screw terminal connections simplify field wiring and reduce installation time
- Non-spring return operation retains actuator position upon power interruption
Specifications
- SKU: M9102-IGA-3S
- Brand: Johnson Controls
- Supply Voltage: 24Vac
- Torque: 18 lb-in
- Travel Time: 30 seconds
- Control Type: Floating Control or Two-Position with Timeout
- Return Type: Non-Spring Return
- Mounting: Direct Coupled
- Wiring: Screw Terminals
Applications
- Commercial HVAC damper actuation
- Air handling unit (AHU) control
- Building automation system (BAS) integration
- VAV and zone control applications
- Valve actuation in hydronic and air systems
