Description
Overview

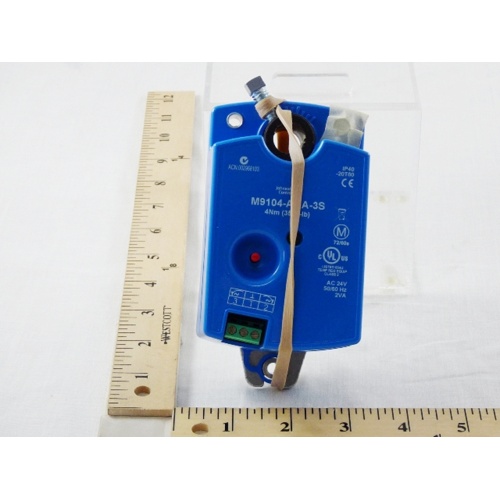

The Johnson Controls M9104-AGA-3S is a reliable, direct coupled actuator engineered for precise damper control in commercial HVAC applications. Operating on a 24VAC floating control signal without timeout, this actuator delivers consistent, repeatable performance across a wide range of air handling and ventilation systems. Its non-spring return design and robust construction make it an ideal choice for installations where dependable positioning and long service life are essential.
Key Features
- 24VAC floating control signal — no timeout function for continuous positioning flexibility
- 35 lb-in (4 Nm) torque output for reliable damper actuation
- 60-second nominal travel time from end to end
- Non-spring return operation — damper holds last position on power loss
- Direct coupled design — mounts directly to damper shaft without crank arms or linkages
- Screw terminal wiring connections for fast, secure field installation
- Compact, low-profile housing suitable for tight mechanical spaces
Application
The M9104-AGA-3S is well suited for use on zone dampers, mixing boxes, and air handling unit dampers in commercial and light industrial HVAC systems. The floating control mode allows the actuator to be driven open or closed by a two-wire signal from a compatible controller, making it compatible with a broad range of building automation and zone control systems.
Specifications
- Brand: Johnson Controls
- Model / SKU: M9104-AGA-3S
- Control Type: Floating (without timeout)
- Supply Voltage: 24VAC
- Torque: 35 lb-in
- Travel Time: 60 seconds (nominal)
- Return Type: Non-spring return
- Mounting: Direct coupled
- Wiring: Screw terminals
Why Choose Jackson Systems?
Jackson Systems is a trusted HVAC distributor stocking Johnson Controls actuators and controls for contractors and building engineers. Order the M9104-AGA-3S with confidence and get the expert support you need for every job.
