Description

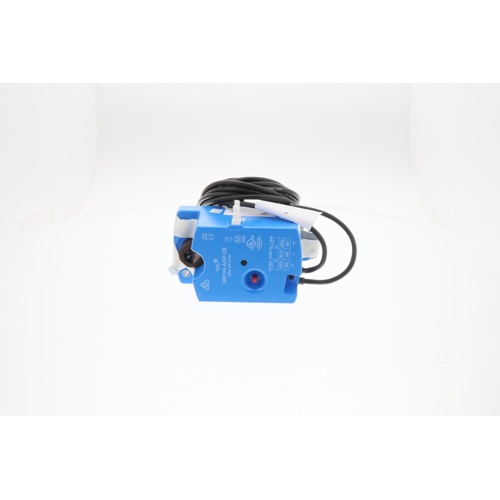

The Johnson Controls M9104-AGP-2S is a high-performance electric non-spring return actuator engineered for precise damper and valve control in commercial HVAC and building automation applications. Designed for reliability and flexible installation, this actuator delivers consistent, repeatable positioning across a wide range of air handling and zone control systems.
Key Features
- Non-spring return design for maintained positioning on power loss
- 24 Vac / 15 Vdc unregulated power supply compatibility
- Differential pressure sensor input for accurate control response
- 200 Ohms nominal control input impedance
- 35 Lb-In running torque for dependable damper actuation
- 0–90 degree rotation range for standard quarter-turn applications
- Selectable clockwise or counter-clockwise rotation direction
- 60-second nominal drive time for smooth, controlled movement
Specifications
- SKU: M9104-AGP-2S
- Brand: Johnson Controls
- Actuator Type: Electric Non-Spring Return
- Supply Voltage: 24 Vac / 15 Vdc Unregulated
- Control Input: Differential Pressure Sensor
- Control Input Impedance: 200 Ohms Nominal
- Running Torque: 35 Lb-In
- Rotation: 0–90 Degrees
- Rotation Direction: Clockwise or Counter-Clockwise (selectable)
- Drive Time: 60 Seconds (nominal)
Applications
The M9104-AGP-2S is well-suited for use in variable air volume (VAV) systems, air handling units, and building automation control loops where accurate damper positioning and reliable non-spring return operation are required. Its selectable rotation direction and differential pressure sensing input make it a versatile choice for new installations and retrofit projects alike.
Why Choose Jackson Systems?
Jackson Systems is your trusted HVAC distributor for Johnson Controls actuators and controls. Order the M9104-AGP-2S today for fast shipping and expert support.
