Description
Overview

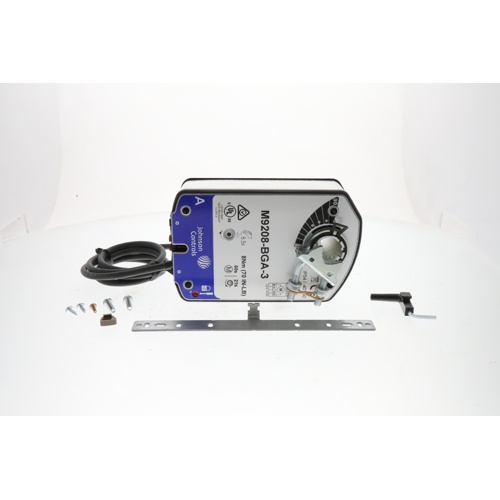

The Johnson Controls M9208-BGA-3 is a reliable, two-position spring return direct coupled actuator engineered for precise damper control in commercial and light industrial HVAC applications. Designed to operate on both 24Vac and 24Vdc power supplies, this actuator delivers consistent performance and automatic fail-safe return upon power loss, making it an ideal choice for critical air-handling and ventilation systems.
Key Features
- Dual voltage compatibility: operates on 24Vac or 24Vdc power supply
- Two-position control for straightforward open/close damper operation
- 70 lb-in torque output for dependable damper actuation
- Spring return mechanism provides automatic fail-safe positioning on power loss
- Power-on run time of 55 to 71 seconds for controlled, smooth travel
- 48-inch appliance cable for flexible installation reach
- Integral 3/8″ flexible metal conduit (FMC) connector for secure, code-compliant wiring
- Direct coupled design — mounts directly to damper shaft without linkage
Specifications
- SKU / Model: M9208-BGA-3
- Brand: Johnson Controls
- Supply Voltage: 24Vac / 24Vdc
- Control Type: Two-Position
- Torque: 70 lb-in
- Spring Return: Yes (fail-safe)
- Power-On Run Time: 55–71 seconds
- Cable Length: 48 inches (appliance cable)
- Conduit Connector: Integral 3/8″ FMC connector
- Mounting: Direct coupled to damper shaft
Application
The M9208-BGA-3 is well-suited for use in commercial HVAC damper control applications including air handling units, ventilation systems, and building automation systems where reliable two-position actuation and fail-safe spring return are required. The integral 3/8″ FMC connector simplifies conduit connections and helps meet electrical code requirements, while the 48″ appliance cable provides installation flexibility in tight mechanical spaces.
