Johnson Controls M9220-BAA-3 120VAC Spring Return Direct Coupled Actuator

Description

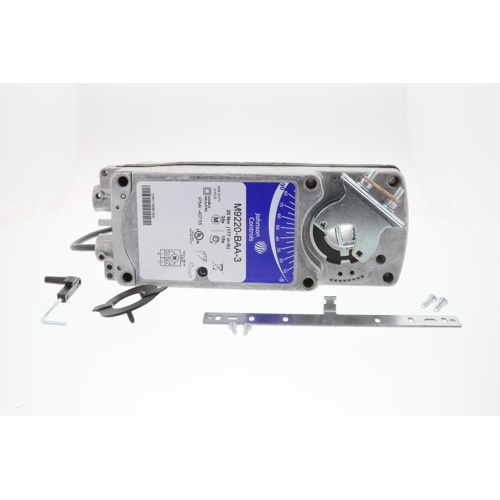

Johnson Controls M9220-BAA-3 Spring Return Direct Coupled Actuator

The Johnson Controls M9220-BAA-3 is a robust, two-position spring return direct coupled actuator engineered for reliable damper control in commercial HVAC applications. Operating on 120 VAC power, this actuator delivers consistent, dependable performance in air handling, ventilation, and building automation systems.

Key Features

• 120 VAC power supply for broad compatibility with commercial HVAC control systems
• Two-position operation for straightforward open/close damper control
• 177 lb-in torque output for dependable actuation of medium to large dampers
• 24 to 57 second power-on run time for smooth, controlled damper movement
• Spring return failsafe mechanism ensures the damper returns to its default position upon power loss
• Direct coupled design eliminates the need for crank arms and linkages, simplifying installation
• 48-inch cable with wire leads for flexible wiring and easy field connections

Application

Ideal for use in air handling units, VAV systems, and building automation environments where reliable two-position damper control is required. The spring return failsafe function is critical in smoke control, ventilation, and energy management applications.

Product Specifications

• Brand: Johnson Controls
• Model / SKU: M9220-BAA-3
• Supply Voltage: 120 VAC
• Control Type: Two Position
• Torque: 177 lb-in
• Power-On Run Time: 24–57 seconds
• Cable Length: 48 inches with wire leads
• Return Type: Spring Return
• Mount Type: Direct Coupled
