Description

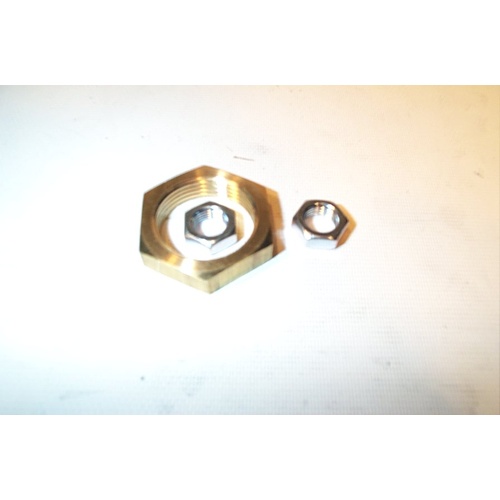

The Johnson Controls MP8000-6201 is a precision-engineered mounting kit designed to mechanically interface the MP82, MP83, MP84, and MP85 Series pneumatic actuators with a range of cast iron flanged globe valves. It provides a secure, reliable connection that ensures proper actuator alignment and consistent valve performance in commercial HVAC and building automation systems.
Compatible Actuators
- MP82 Series Pneumatic Actuator
- MP83 Series Pneumatic Actuator
- MP84 Series Pneumatic Actuator
- MP85 Series Pneumatic Actuator
Compatible Valves
- VG2000 Series Cast Iron Flanged Globe Valves
- V-5252 Series Cast Iron Flanged Globe Valves
- V-5462 Series Cast Iron Flanged Globe Valves
- V-5842 Series Cast Iron Flanged Globe Valves
Valve Size Compatibility
- 2-1/2″ flanged globe valves
- 3″ flanged globe valves
- 4″ flanged globe valves
Key Specifications
- Stem size: 3/8″
- Valve body material: Cast iron flanged
- Designed for use with Johnson Controls MP-Series pneumatic actuators
Features & Benefits
- Ensures proper mechanical alignment between actuator and valve for reliable modulating control
- Simplifies installation with a purpose-built mounting interface
- Broad compatibility across multiple MP-Series actuator models
- Supports 2-1/2″, 3″, and 4″ valve sizes for flexible application use
- Engineered by Johnson Controls for OEM-quality fit and performance
- Ideal for commercial HVAC hydronic systems, chilled water, hot water, and steam applications
Applications
The MP8000-6201 mounting kit is well-suited for commercial and industrial HVAC installations where pneumatic actuators must be precisely coupled to larger-diameter cast iron flanged globe valves. It is commonly used in air handling unit coil control, chilled water and hot water distribution systems, and building automation environments requiring dependable modulating valve control.
