Description

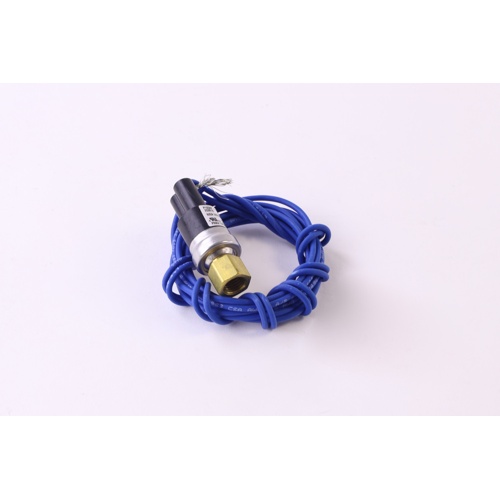

The Johnson Controls P100AP-2 is a direct-mount encapsulated pressure control designed for reliable system protection in commercial and residential HVAC and refrigeration applications. With its open-construction design and automatic reset functionality, this SPST control provides dependable pressure-based switching to safeguard equipment from operating outside safe pressure ranges.
How It Works
The P100AP-2 operates on a pressure drop principle — the contacts open when system pressure falls to 35 PSIG and automatically close again once pressure recovers to 60 PSIG. This automatic reset feature eliminates the need for manual intervention after a pressure event, minimizing downtime and simplifying system maintenance.
Key Features
- Encapsulated pressure control for durability and long service life
- Direct mount design for straightforward installation
- SPST (Single Pole, Single Throw) switching action
- Opens on pressure drop — contact opens at 35 PSIG
- Contact closes at 60 PSIG
- 120/240 Vac contact ratings for broad electrical compatibility
- Open construction for easy field inspection and serviceability
- Automatic reset — no manual reset required after pressure event
Specifications
- Brand: Johnson Controls
- SKU / Model: P100AP-2
- Switch Type: SPST
- Switching Action: Open on Pressure Drop
- Open (Cut-Out) Pressure: 35 PSIG
- Close (Cut-In) Pressure: 60 PSIG
- Contact Voltage Rating: 120/240 Vac
- Mounting Style: Direct Mount
- Construction: Open
- Reset Type: Automatic
Applications
- HVAC refrigeration and cooling systems
- Low-pressure cut-out protection
- Compressor protection circuits
- Commercial refrigeration equipment
- Systems requiring automatic pressure-based switching
