Johnson Controls P100AP-3 Encapsulated Pressure Control Overview

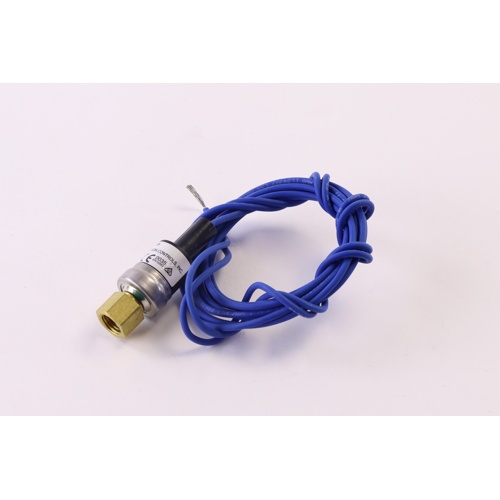

The Johnson Controls P100AP-3 is a direct-mount, encapsulated pressure control engineered specifically for condenser fan cycling applications. With its open-construction design and automatic reset functionality, this control delivers reliable, repeatable performance in demanding refrigeration and air conditioning systems. The SPST switching action opens on pressure drop, making it the ideal solution for head-pressure management and condenser fan staging.
Key Features
- Encapsulated design protects internal components from moisture and contaminants
- Direct-mount configuration for simplified installation on refrigeration systems
- SPST (Single-Pole, Single-Throw) switching action — opens on pressure drop
- Open construction for easy field inspection and serviceability
- Automatic reset eliminates the need for manual intervention after pressure recovery
- Designed specifically for condenser fan cycling duty
Electrical & Pressure Specifications
- Contact Voltage Rating: 120/240 Vac
- Switching Action: Opens on pressure drop (SPST)
- Open Set Point: 150 PSIG
- Close Set Point: 225 PSIG
- Reset Type: Automatic
Application
The P100AP-3 is purpose-built for condenser fan cycling control in commercial refrigeration and HVAC systems. By opening the circuit at 150 PSIG and closing at 225 PSIG, it efficiently manages head pressure to optimize system efficiency, protect compressors, and extend equipment life. Its direct-mount design reduces installation complexity, while the encapsulated housing ensures long-term reliability in outdoor or harsh-environment installations.
