Description

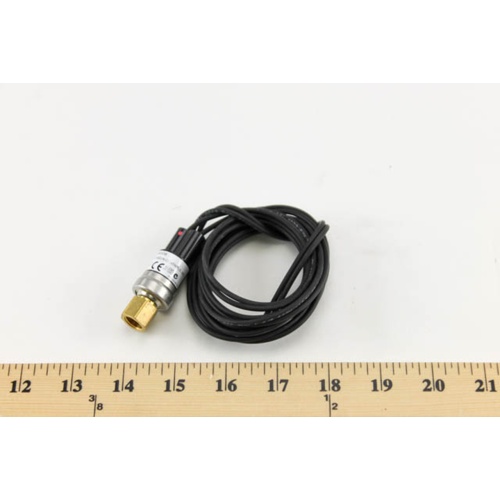

Johnson Controls P100CP-140 Encapsulated Pressure Control
The Johnson Controls P100CP-140 is a direct-mount encapsulated pressure control engineered for reliable, precise pressure switching in commercial and industrial HVAC and refrigeration systems. Featuring open construction and automatic reset, this control provides dependable protection and automatic recovery without manual intervention, reducing downtime and service calls.
Key Features
- Encapsulated design for enhanced durability and protection against environmental contaminants
- Direct mount configuration for straightforward installation directly to system piping or components
- SPST (Single-Pole, Single-Throw) switching action for simple, reliable circuit control
- Open on pressure rise action — opens the circuit when system pressure increases to the set point
- Open construction for easy field inspection and serviceability
- Automatic reset — automatically restores circuit continuity once pressure drops below the close set point, eliminating the need for manual reset
Electrical Specifications
- Contact voltage rating: 120/240 Vac
Pressure Specifications
- Open (cut-out) set point: 350 PSIG
- Close (cut-in) set point: 245 PSIG
- Differential: approximately 105 PSIG
Applications
- High-pressure cut-out protection in refrigeration and air conditioning systems
- Compressor protection against over-pressure conditions
- Commercial HVAC system pressure monitoring and control
- Industrial process pressure switching applications
Why Choose the Johnson Controls P100CP-140?
Johnson Controls is a globally recognized leader in building controls and HVAC solutions. The P100CP-140 reflects their commitment to quality and reliability, offering a robust encapsulated housing, straightforward direct-mount installation, and automatic reset functionality that keeps systems running with minimal manual intervention. Its 120/240 Vac dual-voltage contact rating provides flexibility across a wide range of system configurations.
