Description

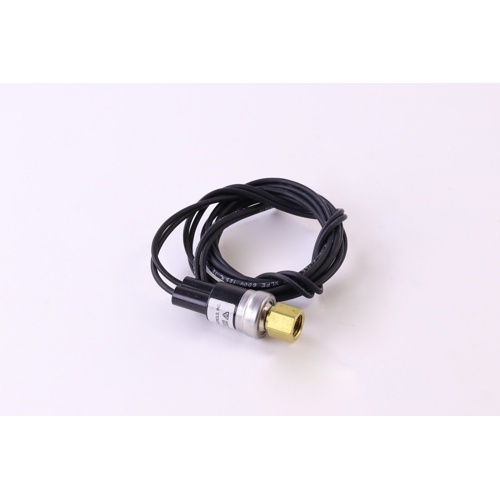

The Johnson Controls P100CP-2 is a direct-mount encapsulated pressure control engineered for reliable high-side pressure protection in commercial and industrial HVAC and refrigeration systems. Featuring open-on-pressure-rise switching action, this SPST control automatically interrupts the circuit when system pressure reaches the set open point, then resets automatically once pressure drops to the close point — eliminating the need for manual intervention and reducing system downtime.
Key Features
- Encapsulated construction protects internal components from moisture, dust, and contaminants for long service life
- Direct-mount design simplifies installation directly to system refrigerant lines or pressure ports
- SPST (Single-Pole, Single-Throw) switching for straightforward circuit control
- Open-on-pressure-rise action provides reliable high-pressure cutout protection
- Automatic reset restores operation once pressure falls back to the close set point — no manual reset required
- Open construction allows for easy field inspection and wiring access
Electrical & Pressure Specifications
- Contact Voltage Rating: 120/240 Vac
- Open (Cut-Out) Pressure: 425 PSIG
- Close (Cut-In) Pressure: 325 PSIG
- Differential: 100 PSIG
- Switch Action: Open on Pressure Rise (High-Pressure Cutout)
- Reset Type: Automatic
- Mounting Style: Direct Mount
- Switch Configuration: SPST
- Construction: Open / Encapsulated
Typical Applications
- High-pressure cutout protection on refrigeration and air conditioning compressors
- Commercial refrigeration systems requiring automatic pressure monitoring
- HVAC equipment requiring 120 Vac or 240 Vac pressure-activated switching
- OEM and replacement installations on compressor discharge lines
The P100CP-2 is a trusted Johnson Controls solution for technicians and contractors who need a dependable, low-maintenance pressure control with proven field performance. Its encapsulated design and automatic reset functionality make it ideal for installations where accessibility for manual reset is limited.
