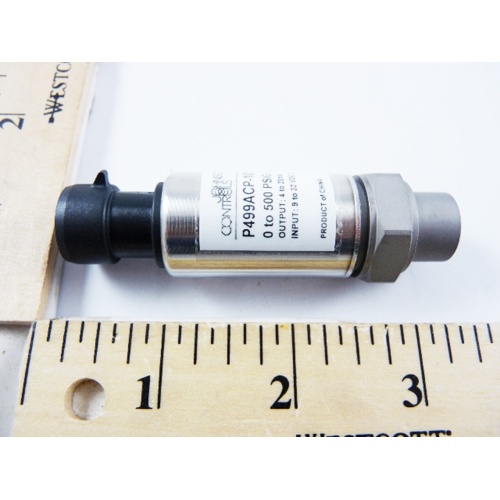

Johnson Controls P499ACP-105 Pressure Transducer Overview
The Johnson Controls P499ACP-105 is a precision pressure transducer engineered for reliable pressure monitoring in commercial HVAC, refrigeration, and building automation applications. Delivering a standard 4–20 mA analog output signal, this transducer integrates seamlessly with building automation systems, DDC controllers, and data acquisition equipment for accurate, real-time pressure feedback.
Key Features
- Pressure range: 0–500 PSI for broad application coverage
- Output signal: 4–20 mA industry-standard analog output for easy BAS/DDC integration
- Connection: 1/4″ SAE Flare Internal Thread with Depressor (Style 47) for secure, leak-free installation
- Designed for use in refrigerant, water, and other compatible fluid systems
- Compact, rugged construction suited for demanding commercial environments
- Part of the Johnson Controls P499 Series — a trusted line of pressure transducers
Application
The P499ACP-105 is ideal for monitoring system pressures in chiller plants, refrigeration circuits, hydronic systems, and air handling units. The 1/4″ SAE flare connection with built-in depressor allows direct connection to Schrader-type service ports, making installation fast and straightforward without the need for additional adapters.
Specifications
- SKU / Part Number: P499ACP-105
- Brand: Johnson Controls
- Series: P499
- Pressure Range: 0–500 PSI
- Output Signal: 4–20 mA
- Process Connection: 1/4″ SAE Flare Internal Thread with Depressor (Style 47)
Why Choose Jackson Systems?
Jackson Systems stocks a wide selection of Johnson Controls pressure transducers and sensing devices to keep your HVAC and building automation projects on schedule. Order the P499ACP-105 today for fast shipping and expert support.
