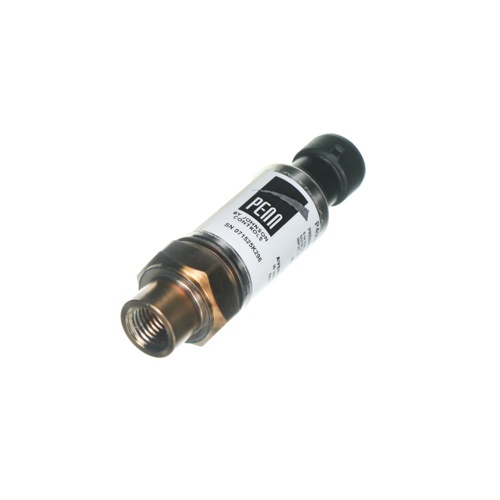

Johnson Controls P499ACP-107 Pressure Transducer Overview
The Johnson Controls P499ACP-107 is a high-performance pressure transducer engineered for reliable pressure measurement in commercial and industrial HVAC and refrigeration systems. Featuring a 0–750 PSI pressure range and a universal 4–20 mA analog output signal, this transducer integrates seamlessly with building automation systems, DDC controllers, and other control equipment requiring precise pressure feedback.
Key Features
- Pressure range: 0–750 PSI for broad application coverage
- Output signal: 4–20 mA for noise-resistant, long-distance signal transmission
- Connection: 1/4″ SAE Flare internal thread with depressor (Style 47) for secure, leak-free installation
- Designed for use in refrigerant, chilled water, condenser water, and other HVAC fluid systems
- Compact, rugged construction suitable for demanding commercial environments
- Compatible with Johnson Controls and other major BAS/DDC platforms
Application
The P499ACP-107 is ideal for monitoring refrigerant pressures, chiller system pressures, and other high-pressure HVAC applications. The 1/4″ SAE flare connection with internal depressor (Style 47) allows for direct connection to refrigerant lines without the need for additional adapters, making installation fast and straightforward. The industry-standard 4–20 mA output ensures compatibility with virtually all modern control systems and panel meters.
Specifications
- SKU: P499ACP-107
- Brand: Johnson Controls
- Pressure Range: 0–750 PSI
- Output Signal: 4–20 mA
- Process Connection: 1/4″ SAE Flare Internal Thread with Depressor, Style 47
- Series: P499
