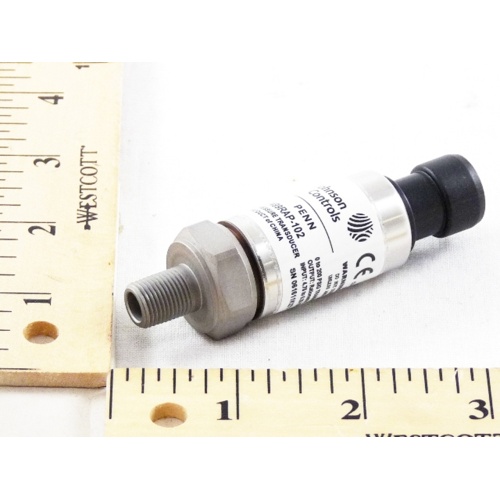

Johnson Controls P499RAP-102 Pressure Transducer Overview
The Johnson Controls P499RAP-102 is a high-accuracy pressure transducer engineered for reliable pressure monitoring in commercial HVAC and building automation applications. Part of the trusted P499 Series (Style 49), this transducer delivers a ratiometric analog output signal that integrates seamlessly with building automation systems, DDC controllers, and other control equipment.
Key Features
- Pressure range: 0–200 PSI for broad application coverage
- Output signal: 0.5–4.5 Vdc ratiometric analog output for accurate, noise-resistant readings
- Process connection: 1/8″ NPT external (male) thread for easy installation
- Style 49 design for compatibility with Johnson Controls P499 Series accessories and mounting hardware
- Compact, rugged construction suited for demanding HVAC environments
- Ratiometric output minimizes signal error caused by supply voltage fluctuations
Application
The P499RAP-102 is ideal for monitoring refrigerant, water, air, and other non-corrosive fluid pressures in commercial HVAC systems. Common applications include chiller and boiler pressure monitoring, refrigeration system pressure sensing, air handling unit static pressure measurement, and integration with Johnson Controls and third-party DDC building automation platforms.
Specifications
- Brand: Johnson Controls
- Model / SKU: P499RAP-102
- Series: P499 (Style 49)
- Pressure Range: 0–200 PSI
- Output Signal: 0.5–4.5 Vdc (ratiometric)
- Process Connection: 1/8″ NPT External Thread (Male)
Why Buy from Jackson Systems?
Jackson Systems stocks a comprehensive selection of Johnson Controls sensors and transducers, backed by knowledgeable HVAC professionals and fast order fulfillment. Order the P499RAP-102 today for reliable pressure sensing in your next commercial HVAC project.
