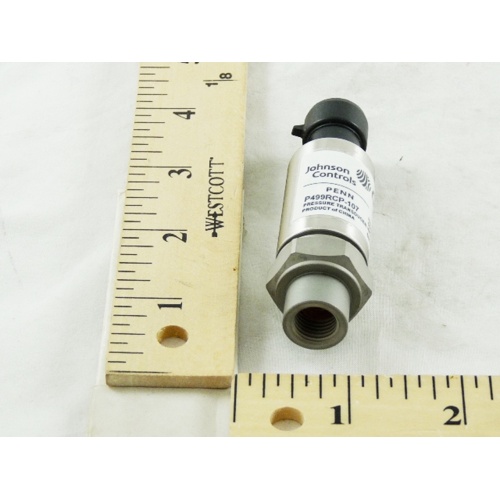

Johnson Controls P499RCP-107 Pressure Transducer Overview
The Johnson Controls P499RCP-107 is a high-performance pressure transducer engineered for precise pressure measurement in HVAC and refrigeration systems. Featuring a ratiometric 0.5 to 4.5 Vdc output signal, this transducer delivers accurate, linear readings across its full 0 to 750 PSI operating range — making it an ideal choice for monitoring refrigerant pressures, chiller systems, and other demanding commercial HVAC applications.
Key Features
- Output Signal: 0.5 to 4.5 Vdc ratiometric for reliable, noise-resistant readings
- Pressure Range: 0 to 750 PSI to accommodate high-side refrigerant and system pressures
- Connection Type: 1/4″ SAE 45-degree flare internal thread for secure, leak-free installation
- Electrical Connection: Packard connector for fast, dependable field wiring
- Designed for use in commercial HVAC, refrigeration, and building automation systems
- Compact, rugged construction suited for demanding field environments
Application
The P499RCP-107 is well-suited for integration with building automation systems (BAS), direct digital controls (DDC), and other Johnson Controls equipment. Its wide pressure range and ratiometric output make it compatible with a variety of controllers and data acquisition systems that require accurate pressure feedback for system optimization, fault detection, and energy management.
Installation Notes
- Thread: 1/4″ SAE 45-degree flare internal thread — use appropriate SAE flare fittings for installation
- Electrical: Packard-style connector simplifies wiring and ensures a secure, vibration-resistant connection
- Ensure supply voltage is compatible with the ratiometric 0.5–4.5 Vdc output requirements of your controller
Product Specifications
- SKU: P499RCP-107
- Brand: Johnson Controls
- Output Signal: 0.5 to 4.5 Vdc
- Pressure Range: 0 to 750 PSI
- Process Connection: 1/4″ SAE 45-Degree Flare Internal Thread
- Electrical Connection: Packard
