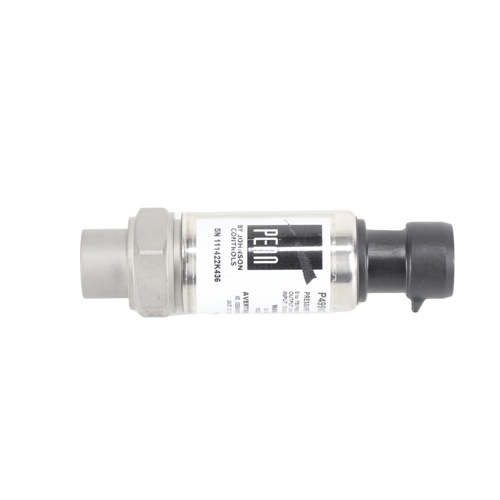

Johnson Controls P499VCP-107 Pressure Transducer Overview
The Johnson Controls P499VCP-107 is a high-performance pressure transducer engineered for precise pressure monitoring in commercial HVAC, refrigeration, and building automation systems. Delivering a linear 0 to 10 Vdc analog output signal across a 0 to 750 PSI measurement range, this transducer integrates seamlessly with building automation controllers, DDC systems, and data acquisition equipment.
Key Features
- Output Signal: 0 to 10 Vdc analog — compatible with most BAS and DDC controllers
- Pressure Range: 0 to 750 PSI for high-pressure refrigerant and fluid system monitoring
- Process Connection: 1/4″ SAE 45-degree internal thread for secure, leak-free installation
- Electrical Connection: Packard-style connector for fast, reliable field wiring
- Compact, rugged construction suited for demanding commercial and industrial environments
- Part of the Johnson Controls P499 Series — a trusted platform in HVAC controls
Applications
- Commercial HVAC refrigerant circuit pressure monitoring
- Chiller and heat pump system integration
- Building automation and DDC control loops
- Compressor suction and discharge pressure sensing
- Hydronic and fluid system pressure measurement
Specifications
- SKU: P499VCP-107
- Brand: Johnson Controls
- Output Signal: 0 to 10 Vdc
- Pressure Range: 0 to 750 PSI
- Process Connection: 1/4″ SAE 45-Degree Internal Thread
- Electrical Connection: Packard Connector
- Series: P499
Why Choose the Johnson Controls P499VCP-107?
The P499 Series transducers are a staple in commercial HVAC controls, trusted by mechanical contractors and building automation engineers for their accuracy, durability, and broad compatibility. The 0–10 Vdc output signal ensures plug-and-play integration with virtually all modern BAS platforms, while the 1/4″ SAE 45-degree internal thread connection provides a standard, secure fit on refrigerant and fluid piping. The Packard electrical connector simplifies field installation and ensures a vibration-resistant, weatherproof connection.
