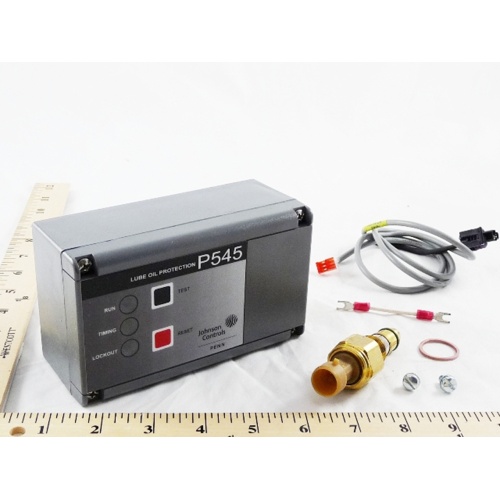

Johnson Controls P545NCB-82 Electronic Lube Oil Control Overview
The Johnson Controls P545NCB-82 is a precision-engineered Electronic Lube Oil Control designed to protect compressors from the damaging effects of low oil pressure. With a built-in 120-second time delay and a 7 PSI ± 1 PSID differential pressure setpoint, this control ensures reliable, accurate monitoring of lube oil pressure in commercial refrigeration and HVAC systems. The manual reset function with integrated alarm output provides a clear fault indication, while the dedicated liquid line solenoid output enables automatic system shutdown when unsafe conditions are detected. Rated for both 120 VAC and 240 VAC operation, the P545NCB-82 offers versatile installation compatibility across a wide range of equipment. Designed exclusively for use with non-corrosive refrigerants.
Key Features
- Electronic lube oil pressure control for compressor protection
- Dual voltage operation: 120/240 VAC
- 120-second time delay on startup to prevent nuisance trips
- Differential pressure setpoint: 7 PSI ± 1 PSID
- Manual reset with alarm output for clear fault indication
- Liquid line solenoid output for automatic system shutdown
- Designed for use with non-corrosive refrigerants only
Specifications
- Brand: Johnson Controls
- SKU: P545NCB-82
- Supply Voltage: 120/240 VAC
- Time Delay: 120 Seconds
- Differential Pressure Setpoint: 7 PSI ± 1 PSID
- Reset Type: Manual Reset
- Outputs: Alarm Output, Liquid Line Solenoid Output
- Refrigerant Compatibility: Non-Corrosive Refrigerants Only
Applications
- Commercial refrigeration compressor protection
- HVAC systems requiring lube oil pressure monitoring
- Systems using non-corrosive refrigerants
- Installations requiring dual-voltage (120/240 VAC) compatibility
