Description

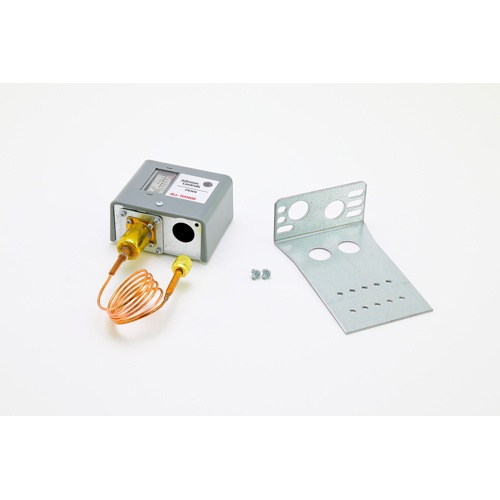

The Johnson Controls P70AA-400 is a single-pole, single-throw (SPST) high pressure control engineered for reliable refrigerant system protection in R410A applications. Featuring a Close High/Open Low switching action, this control automatically opens the circuit when system pressure drops and closes it as pressure rises — providing dependable high-side pressure management and equipment protection.
Key Features
- Single Pole Single Throw (SPST) switching configuration
- Close High/Open Low switching action for high-side pressure protection
- Wide pressure operating range: 100 PSI to 470 PSI
- Compatible with R410A refrigerant systems
- 36″ capillary tube for flexible installation and remote sensing
- 1/4″ flare nut pressure connector for secure, leak-free connection
Application
The P70AA-400 is designed for use in commercial and residential refrigeration and air conditioning systems utilizing R410A refrigerant. Its broad pressure range of 100 to 470 PSI makes it well-suited for the higher operating pressures characteristic of R410A systems. The 36″ capillary provides installation flexibility, allowing the control to be remotely mounted away from the sensing point.
Specifications
- Brand: Johnson Controls
- SKU / Part Number: P70AA-400
- Switch Type: SPST (Single Pole Single Throw)
- Switching Action: Close High / Open Low
- Pressure Range: 100 PSI to 470 PSI
- Capillary Length: 36″
- Pressure Connector: 1/4″ Flare Nut
- Refrigerant Compatibility: R410A
