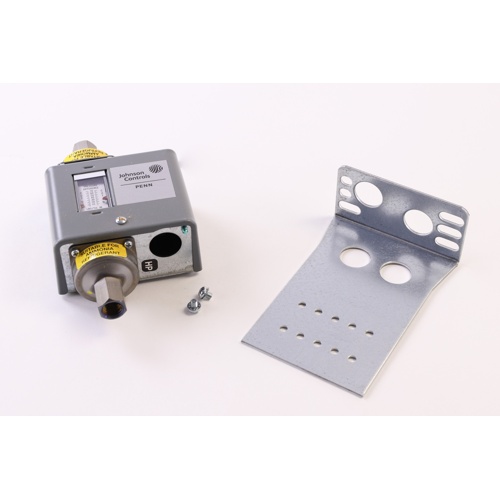

Johnson Controls P74HA-14 Differential Pressure Control Overview
The Johnson Controls P74HA-14 is a robust differential pressure control engineered for demanding HVAC and commercial refrigeration applications. Designed to respond precisely to changes in system differential pressure, this control provides reliable circuit switching to protect equipment and maintain optimal system performance. With a wide operating range of 8 PSI to 70 PSI, it is well-suited for a broad range of pressure-sensitive applications including compressor protection, oil pressure monitoring, and refrigeration system control.
How It Works
The P74HA-14 monitors the differential between two pressure points in a system. When the differential pressure increases to the setpoint, the main contacts close, initiating the desired control action. A separate set of auxiliary contacts opens simultaneously, enabling interlocked or safety-circuit logic without additional relays or external switching hardware. This dual-contact configuration makes the P74HA-14 ideal for applications requiring both a run signal and a safety lockout in a single device.
Key Features
- Main contacts close on differential pressure increase
- Separate auxiliary contacts open on differential pressure increase
- Wide differential pressure operating range: 8 PSI to 70 PSI
- Dual-contact design enables integrated control and safety logic
- Durable construction for long-term reliability in commercial HVAC and refrigeration environments
- Johnson Controls quality engineering for consistent, repeatable switching performance
Typical Applications
- Compressor oil pressure safety control
- Commercial refrigeration system pressure monitoring
- HVAC chiller and condensing unit protection
- Differential pressure-based equipment sequencing
Specifications
- Brand: Johnson Controls
- Model / SKU: P74HA-14
- Control Type: Differential Pressure Control
- Main Contact Action: Close on differential pressure increase
- Auxiliary Contact Action: Open on differential pressure increase
- Pressure Range: 8 PSI to 70 PSI
