Description

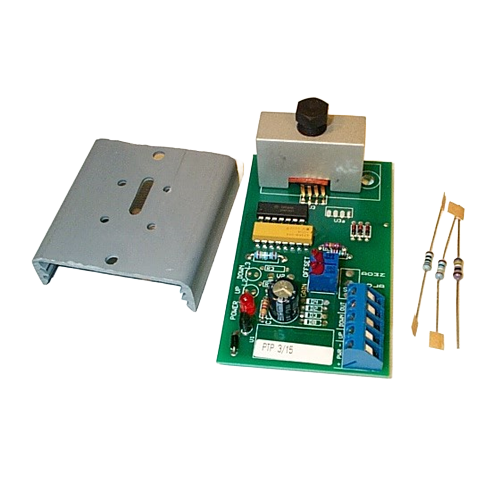

The Johnson Controls PTP3/15 is a precision pressure sensor engineered for building automation and HVAC control applications. Delivering a proportional analog output in either current or voltage format, this sensor provides accurate, real-time pressure feedback to controllers, DDC systems, and BAS panels across a 3 PSI to 15 PSI sensing range.
Key Features
- Proportional analog output — selectable current or voltage signal for flexible system integration
- Operating pressure range: 3 PSI to 15 PSI
- Supply voltage: 24 Vac / 24 Vdc — compatible with standard HVAC control power
- Designed for use in building automation, DDC, and HVAC control systems
- Compact, field-installable design for straightforward commissioning
- Johnson Controls quality construction for reliable long-term performance
Applications
- Duct static pressure monitoring
- Building automation system (BAS) pressure sensing
- Air handling unit (AHU) pressure feedback
- VAV system pressure control loops
- General HVAC differential and gauge pressure measurement
Specifications
- Brand: Johnson Controls
- Model / SKU: PTP3/15
- Pressure Range: 3 PSI to 15 PSI
- Output Type: Proportional Analog — Current or Voltage
- Supply Voltage: 24 Vac / 24 Vdc
